I have a secret to share about Thai Dhupp's build.
Remember his builder had that fancy pile driller etc.
On the quiet, the TD BSI* snuck behind the scenes to film what actually went on.
https://teakdoor.com/attachment.php?a...id=14543&stc=1
Released for the first time, the REAL foundations that were sunk ...
https://youtu.be/VvjqDSz0xyg
https://youtu.be/h0tqV6UcRCM
Watch the short videos ... Masai Warriors they are not!
*BSI Building Scene Investigated
:)
Hi Neverna....EXACTLY!!!Quote:
Originally Posted by Neverna
These are the same pics i sent the OBT engineer. He asked where to get!?
In Britain, it is prolly the only country to do it this way.Quote:
Originally Posted by Thai Dhupp
Most appliances has their own on-off switch, ovens usually has it integrated in the timer, if you need to disable the whole circuit then you do it in your fuse box/house distribution panel. You don't switch off appliances from a wall plate.
Low-power ovens has a plug (convenient when you want to replace it) or is wired directly into a box of the type in the photo above.
If it is a high-power oven then it has its own wiring between distribution panel and the wall box.
This is the type of switch that I often see in Thailand used for individual circuits - commonly air conditioning units. Perhaps one would be suitable for an oven.
https://teakdoor.com/images/imported/2018/06/1051.jpg

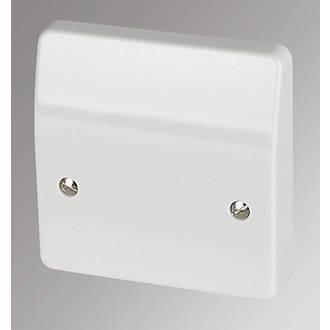

Thinking about it! appliances like ovens come with molded plugs so it is obviously the accepted way of doing it, though I do think a dedicated switch as above is better.
Better for what?Quote:
Originally Posted by Airportwo
You have the same kind of auto breaker in your distribution panel and it does protect both the wiring to the appliance and the appliance itself.
Only usage I can see for a wall mounted switch near the appliance is for the case when the appliance does not have an on-off switch.
Better, so you don't have to walk ALL the way to the breaker box if you're going to work on the oven, but also if the oven catches fire you can quickly kill power to it.
Hard wired or plug and socket? for an appliance that will be stationary for years my preference? - hard wired.Quote:
Originally Posted by lom
Hi Iom... I have bought the cooker switch and connection box from UK now....i had emergency leave and took the opportunity to quickly visit Homebase for the required itemsQuote:
Originally Posted by lom
I am bringing the switch and connection crom UK. we have told the electrician to get the line ready and add the UK components later this year to complete the circuitQuote:
Originally Posted by Neverna
TD,
Here in the states appliances that are free standing are installed with a plug, if mounted in or on something securely then it is hard wired. If you wanted to install a switch in addition to the breaker the switch would need to be able to handle the amperage. All appliances I have seen here have on/off switches installed in them. The breaker would be used to cut power to the unit for service or emergency, but every country may be different and if there isn't a code to follow I guess you can do how you like.
Curious, what brand of induction stove did you get?
Hi there Dennis.. I have not yet got the kitchen components as we just blew 154K on bathroom / toilet 'equipment!Quote:
Originally Posted by dennis4558
I have experience of DeDetrich which I found excellent. that was in the UK though.
Currently I'm looking at Electrolux as they have a good range in all sizes, not too expensive and the matching ovens look pretty good too. eg, I like the flush fit controls when not in use for the oven, and the touch controls (no sticking up knobs) for the hobs. I will keep you posted on the actual items selected once we get to that.
I am back in Dubai now so should be able to resume / catch up on the photos soon.
In fact David, we were just pushing the heads of some trespassers under the concrete slab since they would not stop sticking their nose in we decided to let them have a real close up view.Quote:
Originally Posted by David48atTD
Hope the slab is not weakened....
So...gotta play a bit of catch up with the photos now that I am back from BKK (and UK)

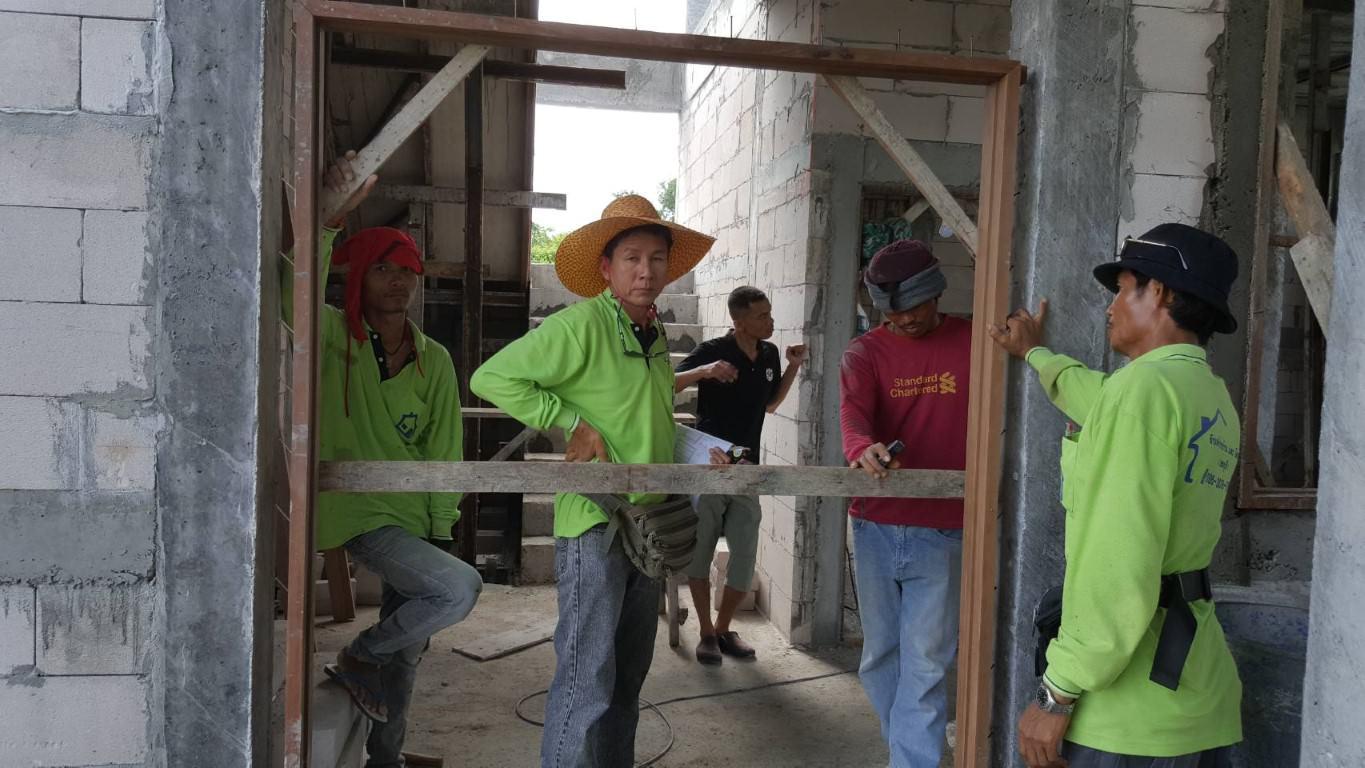

Here is K.Pot fixing door frames...
https://teakdoor.com/images/imported/2018/06/898.jpg
These ones go into the lower hall.
https://teakdoor.com/images/imported/2018/06/899.jpg
https://teakdoor.com/images/imported/2018/06/900.jpg
https://teakdoor.com/images/imported/2018/06/901.jpg
https://teakdoor.com/images/imported/2018/06/902.jpg

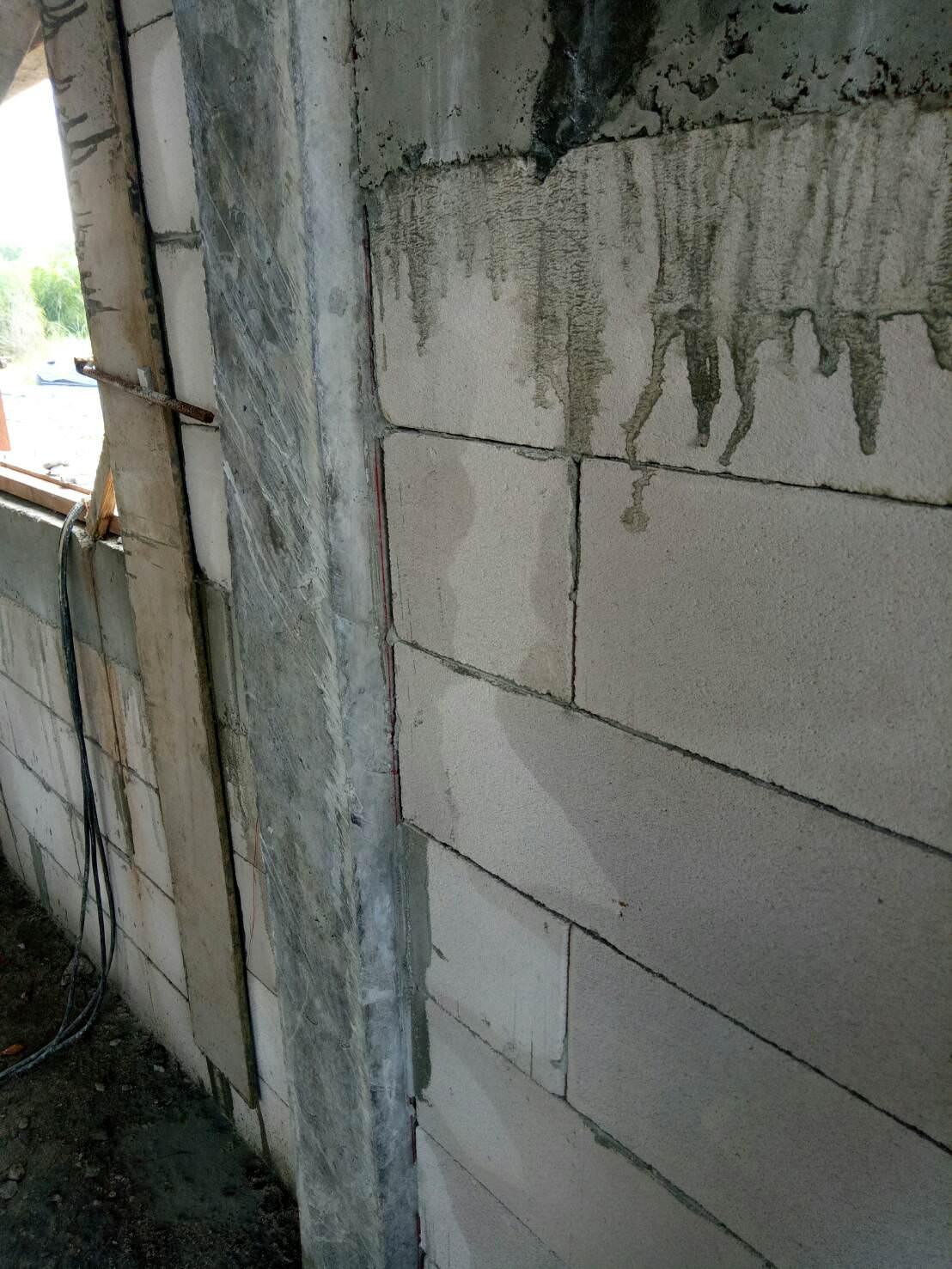

Catch-up: finished wall work.
https://teakdoor.com/images/imported/2018/06/889.jpg
https://teakdoor.com/images/imported/2018/06/890.jpg
https://teakdoor.com/images/imported/2018/06/891.jpg
https://teakdoor.com/images/imported/2018/06/892.jpg
Yeah...looks like they did not put enough mortar on those initial vertical joints so added a bit after.... looks like it but, surely not..!?
Looks crap but it is typical of Qcon block mortaring. One of the first Qcon builds we had here in the Teakdoor.Quote:
Originally Posted by Thai Dhupp
https://teakdoor.com/construction-in-...ml#post2823200
Your work looking pretty good now. ;)
Hi Norton, thanks for the comment - i took a look at that other thread too.Quote:
Originally Posted by Norton
Yeah.. taking shape, as they say. I have been a bit pre-occupied here but ..here comes some more pictures!

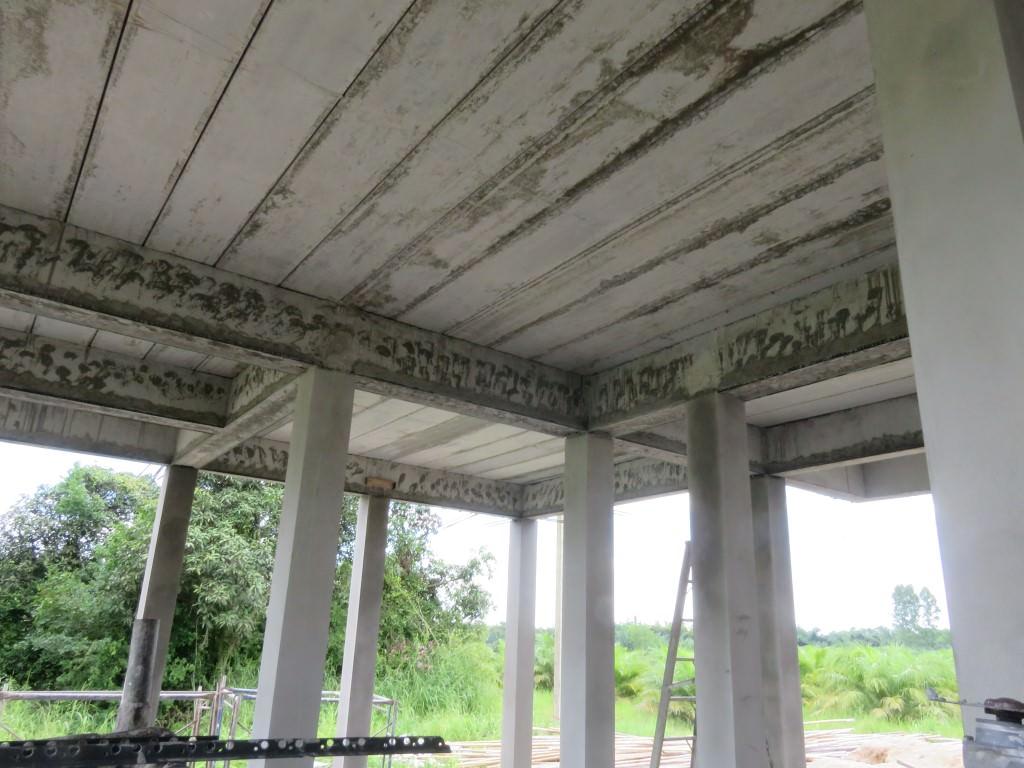

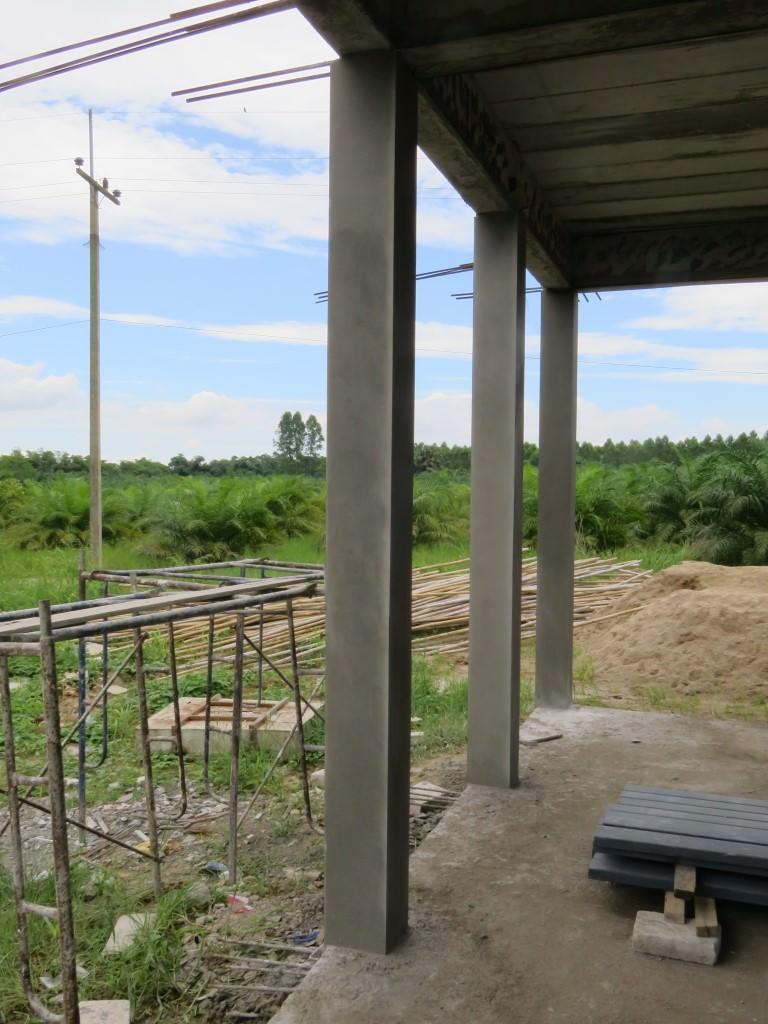

Rendering the external columns
https://teakdoor.com/images/imported/2018/06/753.jpg
https://teakdoor.com/images/imported/2018/06/754.jpg
https://teakdoor.com/images/imported/2018/06/755.jpg
https://teakdoor.com/images/imported/2018/06/756.jpg
https://teakdoor.com/images/imported/2018/06/757.jpg
https://teakdoor.com/images/imported/2018/06/758.jpg
https://teakdoor.com/images/imported/2018/06/759.jpg
You can see where they are prepping up the beams above for the same treatment.
He asked us where the fans and lights were going so I sent him another sketch to confirm.
There are also external electrical sockets to consider, especially as the far wall is currently missing as it is par of zone 3 which we are not building right now
Keeping those spirits happy...
...of course. PJ insisted on topping up the offerings.
https://teakdoor.com/images/imported/2018/06/750.jpg
https://teakdoor.com/images/imported/2018/06/751.jpg
That included bringing a flask of special tea
https://teakdoor.com/images/imported/2018/06/752.jpg
The end result looks pleasing though - hope they are happy..

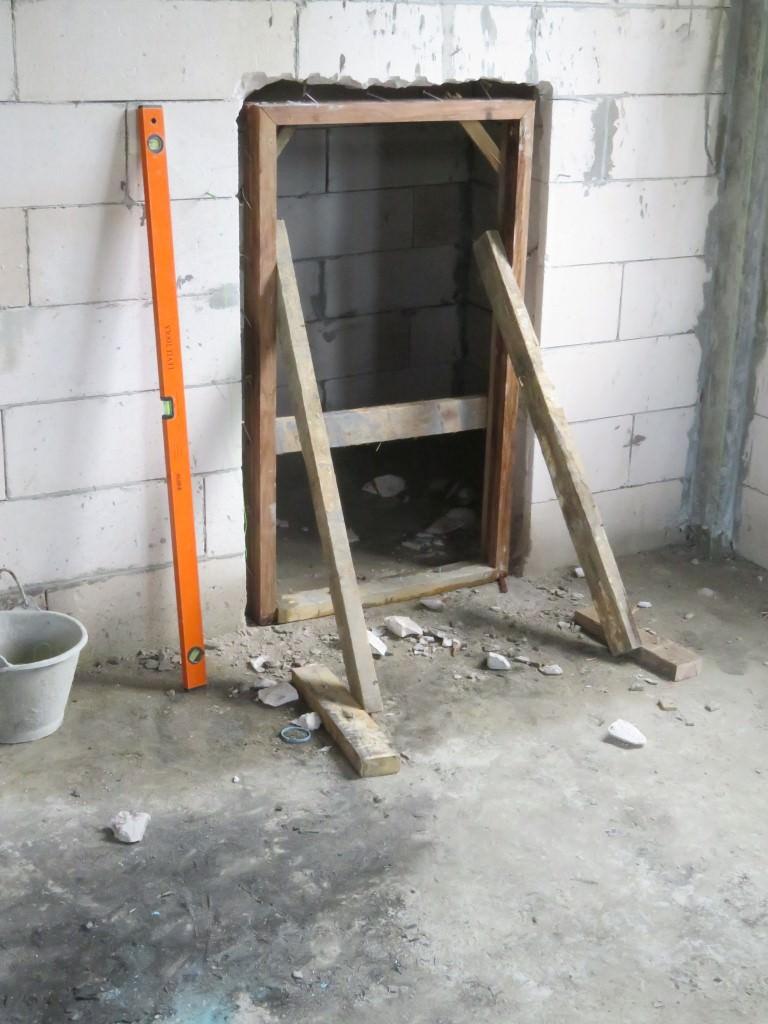

Fixing the kitchen store room door frame
https://teakdoor.com/images/imported/2018/06/747.jpg
https://teakdoor.com/images/imported/2018/06/748.jpg
https://teakdoor.com/images/imported/2018/06/749.jpg
Looks a bit small, doesn't it..!?
The fact is...it IS small.
This store was not on the plans and was suggested by K.Pot.
its not a walk in cupboard (unless you are 2' 6'')
The height was determined by the staircase which you can just see on the left side as you look in.
I see it for storing the suitcases, or maybe canned food. lol maybe it could become the 'Panic Room' if we ever get turned over.
I would certainly panic if I had to squeeze in there with 3 hysterical females....
Its not all external columns...

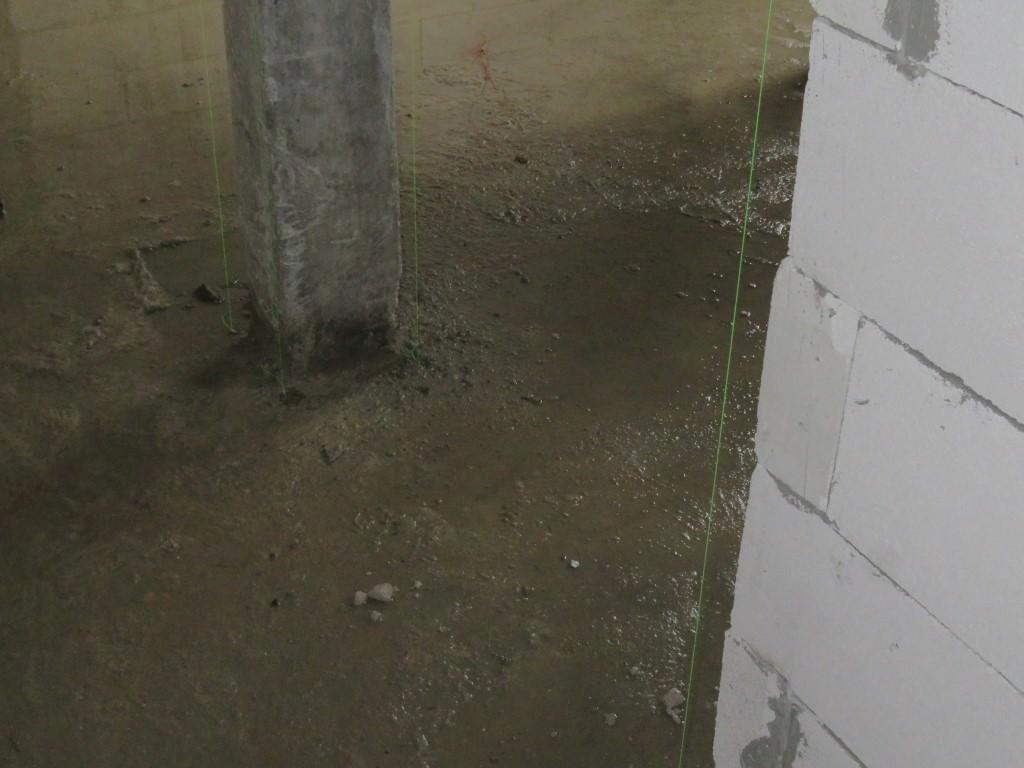

Here they are marking up on the internal columns for the final finishing widths.
You can just make out the plumbed lines for the 4 corners of each column...
https://teakdoor.com/images/imported/2018/06/709.jpg
https://teakdoor.com/images/imported/2018/06/710.jpg
Wall corners also marked up.
https://teakdoor.com/images/imported/2018/06/711.jpg
Close up detail of the corner marking...
On present performance, K.Pot is about 3 weeks ahead of schedule.
I am almost hoping he slows up a bit 'cos I cannot get back there til September, what with my emergency leave, and booked holiday arrangements in that month.
Window frame detail
Here's a quick look at the frame in close up...
https://teakdoor.com/images/imported/2018/06/708.jpg
you can see the seat shape on both sides of the frame - this is to accommodate the window on the inside and the shutter on the outside.
Shutter will open out 180 degrees to sit flush against the wall. when closed in will follow the face of the wall, without protrusion.
The actual glazed window will be closed a lot of the time , but if needed can be opened to allow free air movement
U have a bang up project going there. High quality build. Ur builder may be completed by the time u get back!
joe
Yeah.. he is currently on course to Joe... suddenly he's done a lot of work. He was scheduled to complete in early September but I reckon its now 2nd week of August!Quote:
Originally Posted by Joesixpac
Looking good TD... what wood are you using for frames? looks like Mai Daeng.
Hi Jonny...yes it is.Quote:
Originally Posted by jonnyenglish
We are weighing up using that for some of the flooring too, based on Norton's excellent floor pictures!
PJ wants wood flooring everywhere but I have had to reign her in a bit due to costs!
The Electricians get busy...
https://teakdoor.com/images/imported/2018/06/503.jpg
https://teakdoor.com/images/imported/2018/06/504.jpg
Those AAC blocks chase out easy, allowing for nice straight runs.
https://teakdoor.com/images/imported/2018/06/505.jpg
It looks like its on top of the wall, not inside it...
https://teakdoor.com/images/imported/2018/06/506.jpg
Here's the closeup though - definitely in a chased out slot
^ Can't you give the sparky's some Thai Dhupp T"Shirts?
Great job anyway/ :)
Secondary roof over windows - trusses
https://teakdoor.com/images/imported/2018/06/494.jpg
Look son... the house has started sprouting branches....
https://teakdoor.com/images/imported/2018/06/495.jpg
We extended the canopy over the master bedroom balcony to completely shield the bedroom
https://teakdoor.com/images/imported/2018/06/496.jpg
OMG something's happened.. the guy is wearing lace -up shoes!
https://teakdoor.com/images/imported/2018/06/497.jpg
https://teakdoor.com/images/imported/2018/06/498.jpg
Once completed, they will add battens, same as on the main roof, and tile it .
https://teakdoor.com/images/imported/2018/06/499.jpg
https://teakdoor.com/images/imported/2018/06/500.jpg
Of course its man down below, in the shade, waiting to cut more truss steel to size.
Shame to... if you got it, flaunt it... its keeping the building team ladies happy and their fellahs on their toes!Quote:
Originally Posted by Loy Toy
You might not recognise them in day light, but these guys are the Chippendales reserves over at that floor-show in Pattaya.
Thanks for the encouragement - its actually taking shape real good now.
The sanitary wares gets delivered this Saturday, from Bunthavorn, all being well.
Secondary roof - trusses part 2
https://teakdoor.com/images/imported/2018/06/487.jpg
Finally! Something to cut!
https://teakdoor.com/images/imported/2018/06/488.jpg
https://teakdoor.com/images/imported/2018/06/489.jpg
https://teakdoor.com/images/imported/2018/06/490.jpg
Good frontal view showing the general shape of things
https://teakdoor.com/images/imported/2018/06/491.jpg
https://teakdoor.com/images/imported/2018/06/492.jpg
https://teakdoor.com/images/imported/2018/06/228.jpg
It looks like it's going to be a big house. How many square metres of floor space wil it have, TD?
* Sorry if you've already posted the details and I've missed it.
Hey Neverna, I did post before, long ago, but no problem to refresh the informationQuote:
Originally Posted by Neverna
zone 1, with the master bedroom suite, the dining room, office, bedroom 2 with ensuite, Buddha room, kitchen and 2 w/c - 20m x 6m - 120m2 x 2 floors = 240m2
zone 2 with the 10 x 8 outdoor room, and incorporating the outdoor incinera.... thai kitchen, plus part of bedroom 3 when we build zone 3 .....................= 137m2
zone 3 (when we build it) with beds 3 n 4 and en-suites, the gym and the tv room / cinema (call it what you will) plus the pool changing area .................= 112m2 (14 x 4 x 2 floors)
.................................................. .................................................. .................................................. .................................................. ...........so...489m2 approx
Thanks. I look forward to seeing the finished build.
Lol... me n u both!!Quote:
Originally Posted by Neverna
K.Pot is racing now... I think he has a lot of work on.. hes got 3 crews, over 30 workers out there.
General Progress
https://teakdoor.com/images/imported/2018/06/409.jpg
Rendering materials ready for the walls
https://teakdoor.com/images/imported/2018/06/410.jpg
The attention to detail - K.Pot's building crew know to tie the work cabling out of the way to reduce the chance of accidents
https://teakdoor.com/images/imported/2018/06/411.jpg
Access scafolding for the electrical cable installation
https://teakdoor.com/images/imported/2018/06/412.jpg
Initially this was too short (though it was to plan) - now the overhang has been lengthened
https://teakdoor.com/images/imported/2018/06/413.jpg
Bringing the floor for one of the WC's up to level ready for the tiling
