Thai Dhupp and Princess Joy's Thai House Build

Getting ready for the ceremony...

https://teakdoor.com/images/imported/2018/02/680.jpg

https://teakdoor.com/images/imported/2018/02/681.jpg

https://teakdoor.com/images/imported/2018/02/682.jpg

https://teakdoor.com/images/imported/2018/02/683.jpg

https://teakdoor.com/images/imported/2018/02/684.jpg

https://teakdoor.com/images/imported/2018/02/685.jpg
https://teakdoor.com/images/imported/2018/02/686.jpg
Our best Tupperware, or is it supperware, or superware.....that plastic 'crockery', anyway...

https://teakdoor.com/images/imported/2018/02/687.jpg

https://teakdoor.com/images/imported/2018/02/688.jpg

https://teakdoor.com/images/imported/2018/02/689.jpg

That's only part of it... all the butchery items, which have been cooked, have to be collected 6am of the 15th Feb on the way to Chonburi

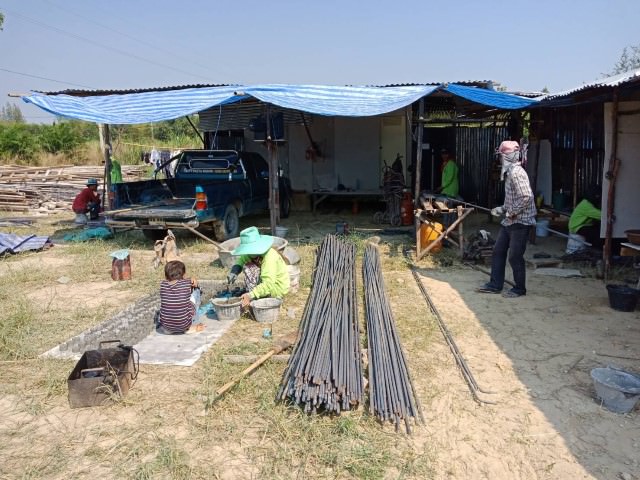

Chair production line.

https://teakdoor.com/images/imported/2018/02/678.jpg
looks like a nice day for it...

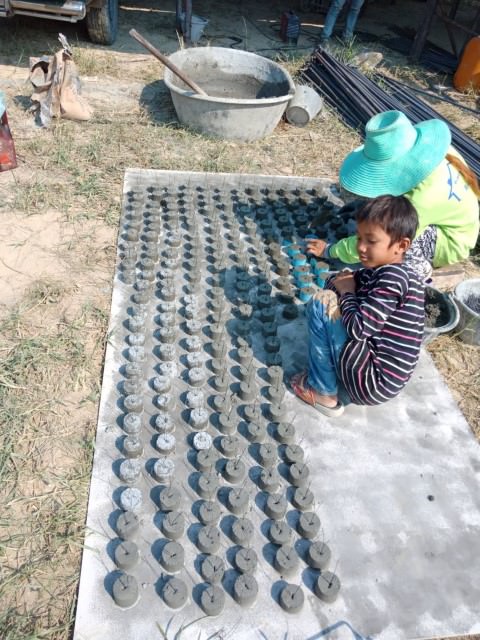

https://teakdoor.com/images/imported/2018/02/661.jpg
so..THIS is what junior's job is!

https://teakdoor.com/images/imported/2018/02/665.jpg
Let 'em cure then ...make some more!

https://teakdoor.com/images/imported/2018/02/665.jpg

Rebar chairs? At this point I'm not sure where they're going to use them.

https://teakdoor.com/images/imported/2018/02/661.jpg

Junior looks impressed with his work

Quote:

---

Originally Posted by dennis4558

https://teakdoor.com/images/imported/2018/02/661.jpg

Junior looks impressed with his work

---

Hi Dennis, yes, I think this is his forte... and hes STILL not wearing the company T-shirt- what a rebel.

You got it - rebar chairs to keep the slab rebar mesh in the middle of the slab and surrounded by concrete, not lying on the soil where the groundwater will rot the metal in a few years...

K.Pot is planning ahead. Make a load of them now - he will need them for the ground floor slab soon, and the first floor slab later.

Although it is still a little way off, once the piles are all in place and hes cast those pile caps, he will be coming off that with the ground floor ring beam and then the slab construction itself at which point, yes, he will need the chairs

He made about 300 chairs in that batch, in case any one is trying to count them...

Quote:

---

Originally Posted by Thai Dhupp

ground floor ring beam

---

Isn't this several cms above ground?

Quote:

---

Originally Posted by Norton

Isn't this several cms above ground?

---

Yeah..sorry..getting ahead of myself there.... ground floor is about 0.5m above the ground level, but you get the idea.

Very long and hectic day at the Museum of the Future yesterday.... I am frazzled

Lot more photos to upload, including today's offerings ceremony with the monk on site this morning

The reason I asked the question was I couldn't figure out why the chairs needed on the ground floor. Never mind. All will be clear soon. :)

Quote:

---

Originally Posted by Norton

The reason I asked the question was I couldn't figure out why the chairs needed on the ground floor. Never mind. All will be clear soon. :)

---

Hi Norton...sooner or later... he will be casting floor slabs. He's just planning ahead I reckon.

Fabricating the pile cap cages

Good day to all...

https://teakdoor.com/images/imported/2018/02/591.jpg

https://teakdoor.com/images/imported/2018/02/592.jpg

For when the pile cages have been concreted in and its gone off and been dug out...

Drilling and concreting day 2

https://teakdoor.com/images/imported/2018/02/573.jpg

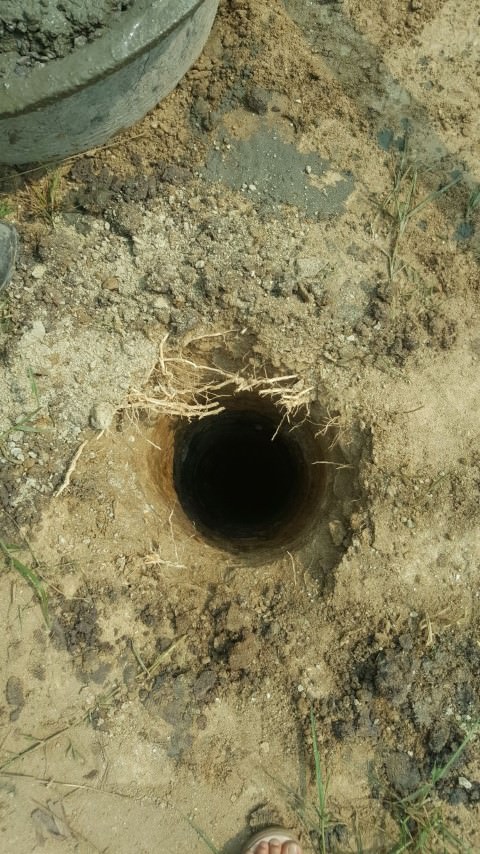

The bore looks something like this - when you are drilling the piles they will of course be circular, hence those spiral cages...

https://teakdoor.com/images/imported/2018/02/574.jpg
The 'sharp end' - taking a rest.

https://teakdoor.com/images/imported/2018/02/575.jpg

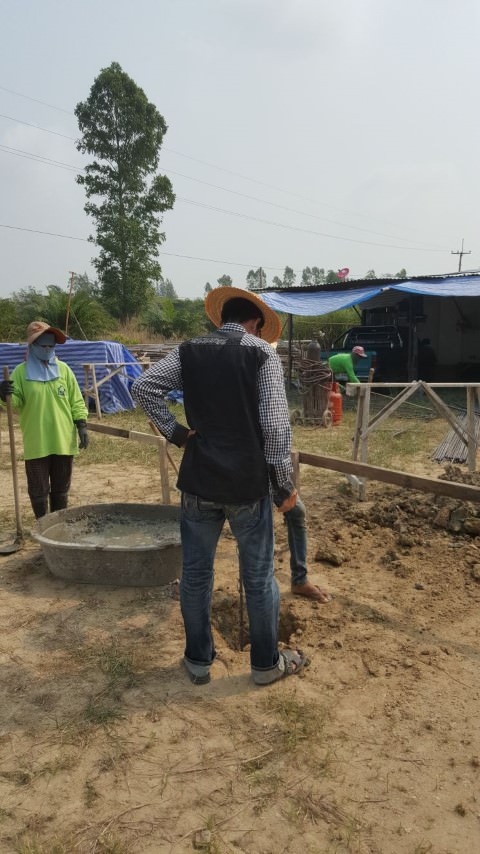

Lowering the pile cage into position before pouring the concrete.

https://teakdoor.com/images/imported/2018/02/576.jpg

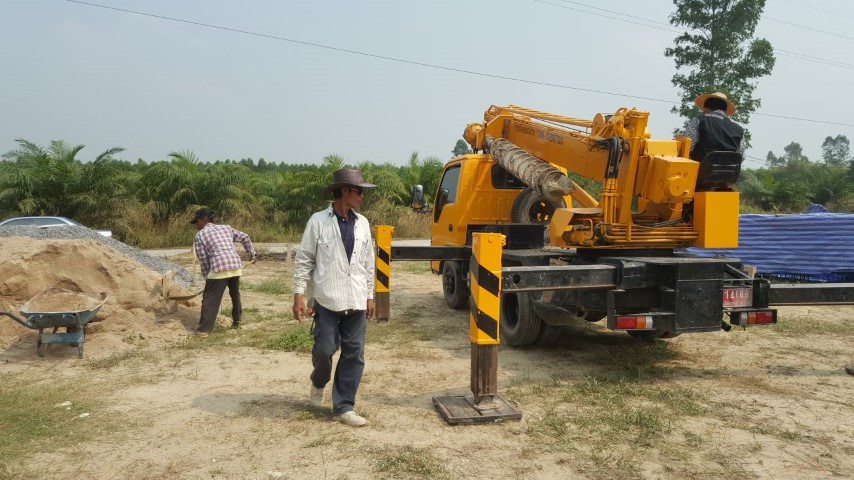

The drilling rig is setting up again

https://teakdoor.com/images/imported/2018/02/577.jpg

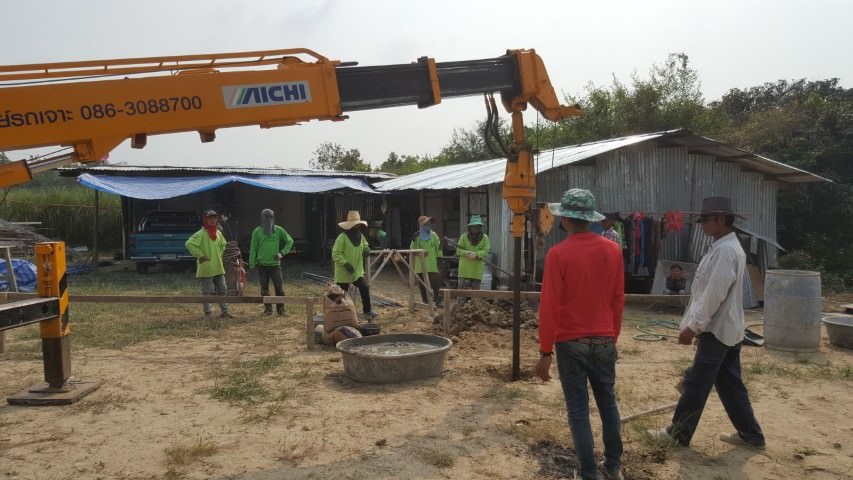

This ones going right down - concrete is all mixed ready to place once the cage has been inserted.

https://teakdoor.com/images/imported/2018/02/578.jpg


https://teakdoor.com/images/imported/2018/02/579.jpg

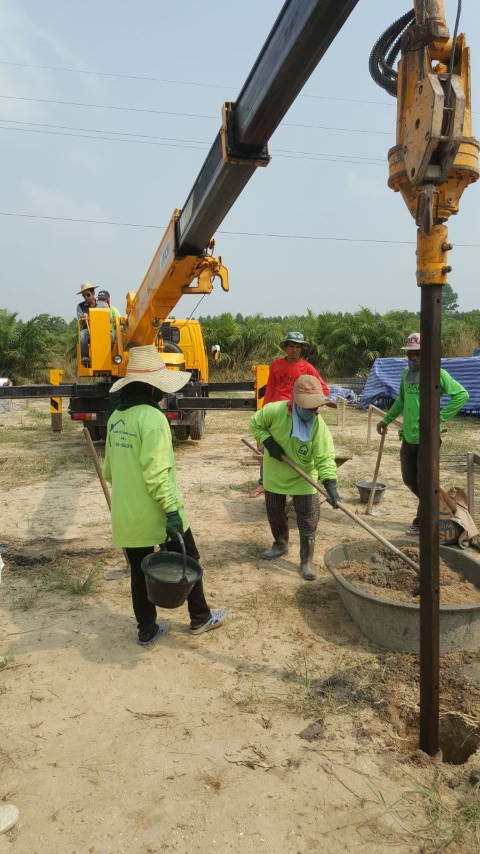

OMG!! ...that snake was our lunch - you there!! Pull it out now!!

https://teakdoor.com/images/imported/2018/02/580.jpg
The 3-girl-powered concrete batching plant in full swing...

https://teakdoor.com/images/imported/2018/02/581.jpg
This hole needs this cage - some are shorter than others but the key thing is getting down to the hard layer below.

https://teakdoor.com/images/imported/2018/02/582.jpg
Time out while the crew show off their super-clear safety toe-cap work-boots...

https://teakdoor.com/images/imported/2018/02/583.jpg
That rig never stops...mainly because he has another job to go to...

https://teakdoor.com/images/imported/2018/02/584.jpg
The supplies keep a-comin'...

https://teakdoor.com/images/imported/2018/02/585.jpg
...and the batcher keeps using them!

https://teakdoor.com/images/imported/2018/02/586.jpg
Cages waiting in the wings...

https://teakdoor.com/images/imported/2018/02/587.jpg
Good mix and not a slump test in sight...

Quote:

---

Originally Posted by Thai Dhupp

Good mix and not a slump test in sight...

---

Hope a good mix. Time will tell. :)
Surprized not using premix for the pilings. Hand mix is cheaper but risk a bad mix.

Drilling and concreting - day 2 (continued)

https://teakdoor.com/images/imported/2018/02/559.jpg
Everyone's helping now...

https://teakdoor.com/images/imported/2018/02/560.jpg
Cage in place

https://teakdoor.com/images/imported/2018/02/561.jpg
Crane relocates again

https://teakdoor.com/images/imported/2018/02/562.jpg
Yep - 5-and-a-bit meters... bit more to go yet...

https://teakdoor.com/images/imported/2018/02/563.jpg
Drill out, cage and concrete in!

https://teakdoor.com/images/imported/2018/02/564.jpg
Boss-man carefully checks to see if he is still vertical, while in the background ladies are playing with some sand - and - water...

https://teakdoor.com/images/imported/2018/02/565.jpg
After a heavy round of chair fabrication, 'Junior' is crashed n burned...

https://teakdoor.com/images/imported/2018/02/566.jpg
"Right! swing it out n lets get the cage in..."

https://teakdoor.com/images/imported/2018/02/567.jpg

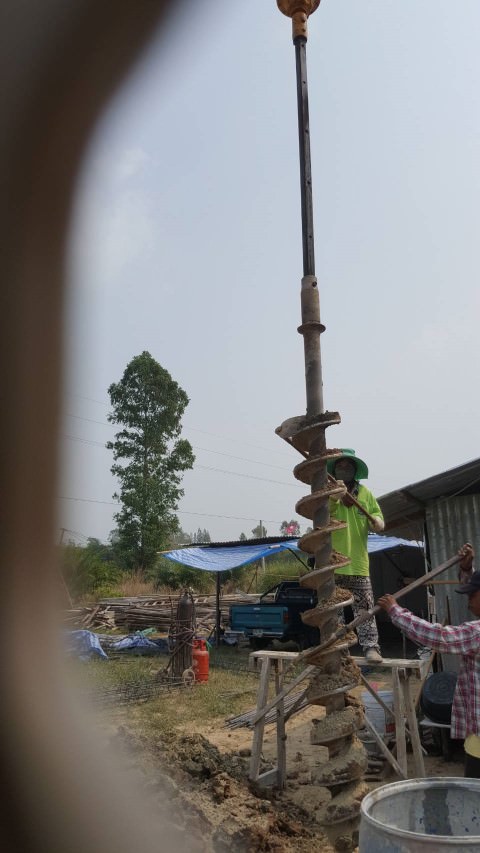

K.Pot, looking happy cos he knows hes nearly completed stage 1 and no problems at all whatsoever

https://teakdoor.com/images/imported/2018/02/568.jpg
Even my up-skirt camera is getting in on the act. I mean 'covert bird-watching'...

https://teakdoor.com/images/imported/2018/02/569.jpg

Phew! ...thats the last one!

Quote:

---

Originally Posted by Norton

Hope a good mix. Time will tell. :)
Surprized not using premix for the pilings. Hand mix is cheaper but risk a bad mix.

---

I hear you, Norton but I have faith in him, and anyway the OrBorTor Engineer is checking.

You need to be putting the cage in straight away and then back-filling it with the concrete quickly to avoid any chance of collapse. With these piles the mixer truck would be waiting a long time between each hole as they take some time to drill out.

Depth of those holes there shouldn't be any settling going on, looks like things are moving right along.

Quote:

---

Originally Posted by dennis4558

Depth of those holes there shouldn't be any settling going on, looks like things are moving right along.

---

Hi Dennis, yeah, there were a few at around 8m, but in the main around 5-5.5m.

Things are moving on - thats stage 1 completed already. 7 more to go plus the snagging and final payment.

i really hope they all go as smoothly as this one has.

Quote:

---

Originally Posted by Thai Dhupp

I hear you, Norton but I have faith in him, and anyway the OrBorTor Engineer is checking.

You need to be putting the cage in straight away and then back-filling it with the concrete quickly to avoid any chance of collapse. With these piles the mixer truck would be waiting a long time between each hole as they take some time to drill out.

---

Cool. I am unfamiliar with pilings. All house builds I have done use footing and columns.

Quote:

---

Originally Posted by Norton

Cool. I am unfamiliar with pilings. All house builds I have done use footing and columns.

---

In essence its the same as when we were small and digging holes in the sand on the beach. eventually, part of the sides would fall in.

In the case of the pile holes, if it falls in and blocks you end up having to basically re-align the rig over the hole and run the drill back down the hole to clear the blockage - all wasted time.

The same issue, but even worse if it collapses after you have put the cage in because now you have loose soft earth where concrete should be. (we checked ours by shining a torch directly to the bottom of each one before pouring). You can also add a specialist mortar compound or even wet clay to the drilling process to 'line' the holes sides and it also seals up any fissures in the hole side which would swallow concrete. This process is called grouting.

Its exactly the same process as we used on the piles we placed on the Abu Dhabi airport job -except those piles were up to 1.5m diameter and 29m in length! We needed to do a table lift to actually place them. Same drilling. same grouting. same placement. same concreting, though.

Learned something new today. Thanks.

Spirit offerings ceremony on site...

Early morning.

https://teakdoor.com/images/imported/2018/02/489.jpg
About 7.15am

https://teakdoor.com/images/imported/2018/02/490.jpg

https://teakdoor.com/images/imported/2018/02/491.jpg

https://teakdoor.com/images/imported/2018/02/492.jpg
Bless her... she worked very hard to get all this ready

https://teakdoor.com/images/imported/2018/02/493.jpg

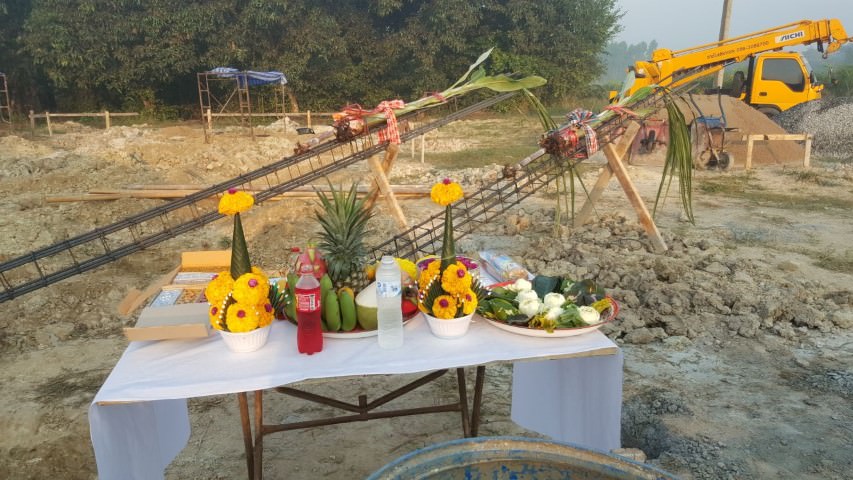

Cages all ready to be placed once the gold has been buried...

https://teakdoor.com/images/imported/2018/02/494.jpg

https://teakdoor.com/images/imported/2018/02/444.jpg

https://teakdoor.com/images/imported/2018/02/443.jpg

https://teakdoor.com/images/imported/2018/02/495.jpg

https://teakdoor.com/images/imported/2018/02/496.jpg

https://teakdoor.com/images/imported/2018/02/497.jpg

https://teakdoor.com/images/imported/2018/02/498.jpg

https://teakdoor.com/images/imported/2018/02/499.jpg
Just waiting for the Monk to arrive...

Spirit offerings ceremony on site...
The monk arrives.

https://teakdoor.com/images/imported/2018/02/483.jpg

https://teakdoor.com/images/imported/2018/02/484.jpg
No...thats not his table leg she putting the candle to...



https://teakdoor.com/images/imported/2018/02/485.jpg

https://teakdoor.com/images/imported/2018/02/486.jpg
Im sure there is a'health and Safety' issue somewhere here..."Monk breaks leg on Construction professionals building site" springs to mind....

https://teakdoor.com/images/imported/2018/02/487.jpg

(more pix tomorrow... I need to go home now!)

Spirit offerings ceremony on site...

Placing the gold and silver

https://teakdoor.com/images/imported/2018/02/458.jpg

https://teakdoor.com/images/imported/2018/02/459.jpg

https://teakdoor.com/images/imported/2018/02/460.jpg
Breaks my heart to see all that hard-earned gold being buried...

https://teakdoor.com/images/imported/2018/02/461.jpg
A spirit ceremony would not be complete without a few tent pegs hammered in...

Spirit offerings ceremony on site...

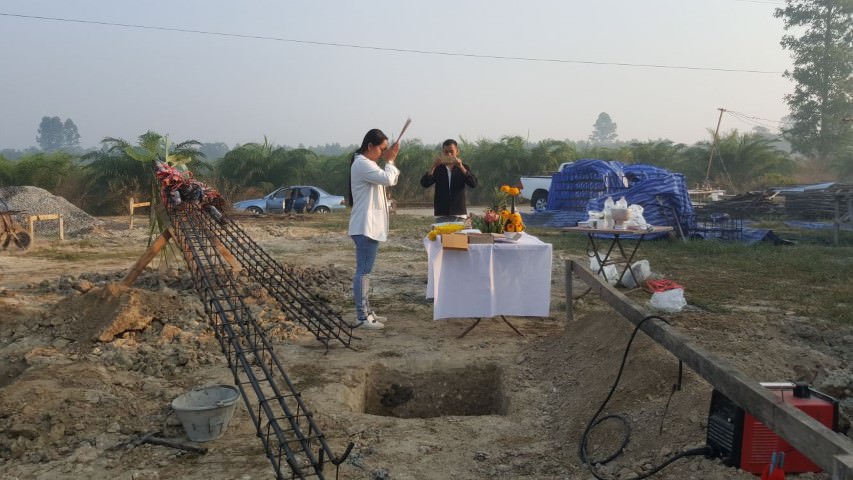

The offerings to spirits ceremony begins.

https://teakdoor.com/images/imported/2018/02/443.jpg

https://teakdoor.com/images/imported/2018/02/444.jpg

https://teakdoor.com/images/imported/2018/02/445.jpg

https://teakdoor.com/images/imported/2018/02/446.jpg

https://teakdoor.com/images/imported/2018/02/447.jpg

https://teakdoor.com/images/imported/2018/02/448.jpg

https://teakdoor.com/images/imported/2018/02/449.jpg

https://teakdoor.com/images/imported/2018/02/450.jpg

https://teakdoor.com/images/imported/2018/02/451.jpg

https://teakdoor.com/images/imported/2018/02/452.jpg

https://teakdoor.com/images/imported/2018/02/453.jpg

https://teakdoor.com/images/imported/2018/02/454.jpg

https://teakdoor.com/images/imported/2018/02/455.jpg

https://teakdoor.com/images/imported/2018/02/456.jpg

https://teakdoor.com/images/imported/2018/02/457.jpg

Some of these photos might be a bit out of sync as i have sooooo many to post!!
(i can post less, I suppose...)

Spirit offerings ceremony on site...

The holes are dug , lined with gold and ready to receive the banana-clad cageshttps://teakdoor.com/images/imported/2018/02/441.jpg

https://teakdoor.com/images/imported/2018/02/442.jpg

Spirit offerings ceremony on site...

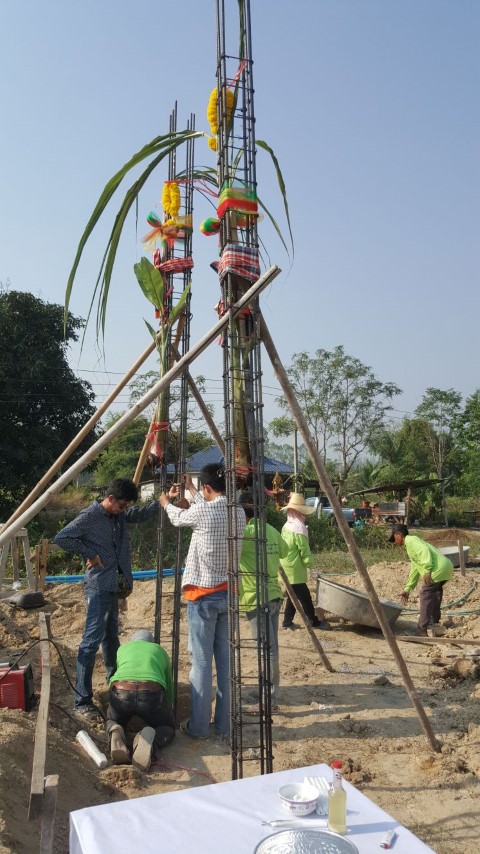

Placing the cages


https://teakdoor.com/images/imported/2018/02/437.jpg

https://teakdoor.com/images/imported/2018/02/438.jpg

https://teakdoor.com/images/imported/2018/02/439.jpg

https://teakdoor.com/images/imported/2018/02/440.jpg

Spirit offerings ceremony on site...

Final concreting in...

https://teakdoor.com/images/imported/2018/02/435.jpg

https://teakdoor.com/images/imported/2018/02/436.jpg

https://teakdoor.com/images/imported/2018/02/383.jpg

I thought the first post ceremony was to appease the land spirits, so it's an animist thing usually conducted by a local elder or mor duu/witchdoctor and not a Buddhist ritual involving monks ? And then monks bless the house when it is finished. Or maybe I'm just used to the pagan rites of deepest darkest Issaan and not the civilization of Chonburi ?

Quote:

---

Originally Posted by mikenot

Or maybe I'm just used to the pagan rites of deepest darkest Issaan and not the civilization of Chonburi ?

---

You are. We do things differently up here as you stated.
Mor duu to start. Build the house. Walk around the house until the mor duu gives the all clear of bad spirits and allows you entry. Then a gaggle of monks and the entire village go inside and bless the house. :)

Did you watch the cement being poured on that gold and silver?
I'd be tempted to dig it up and re-skim it :)

Interesting insight into the ceremony.

https://teakdoor.com/images/imported/2018/02/383.jpg

You're above ground, not is when it looks like you're making progress. Alway looks better when you can see what gets done.

Quote:

---

Originally Posted by mikenot

I thought the first post ceremony was to appease the land spirits, so it's an animist thing usually conducted by a local elder or mor duu/witchdoctor and not a Buddhist ritual involving monks ? And then monks bless the house when it is finished. Or maybe I'm just used to the pagan rites of deepest darkest Issaan and not the civilization of Chonburi ?

---

Hey, Mikenot, welcome,

Like you, I'm not the expert in these rituals, but for sure PJ is!! her bro' even more so. She consulted at the temple in BKK and again at the temple near to us, so I'm sure whatever was 'the right thing to do' was done!!

That bit about the monks at the end? yep...shes already told me that this will be taking place too.

Not sure if Chonburi province is more civilized but i am sure its more expensive to build!!

Quote:

---

Originally Posted by Norton

You are. We do things differently up here as you stated.
Mor duu to start. Build the house. Walk around the house until the mor duu gives the all clear of bad spirits and allows you entry. Then a gaggle of monks and the entire village go inside and bless the house. :)

---

hi Norton, what is Mor Duu? not heard that one before, lol certainly not in Dubai...

Quote:

---

Originally Posted by Thai Dhupp

hi Norton, what is Mor Duu? not heard that one before, lol certainly not in Dubai...

---

Literally an expert at seeing. Figuratively a forune teller. A shaman.

Quote:

---

Originally Posted by Chittychangchang

Did you watch the cement being poured on that gold and silver?
I'd be tempted to dig it up and re-skim it :)

Interesting insight into the ceremony.

---

Hi there CCC, I tried extending the telescope from downtown Do Buy, but no... could not get it to focus on Chonburi!! Seriously, no but plenty of others were checking that pour.

Incidentally, it was hand- mix only for those 2 ritual cages...the rest will be done with the truck mixer from the local supplier.

Yeah.. that ceremony was interesting for me too, never seen one before. I was there for some of it via Skype.

Quote:

---

Originally Posted by Maanaam

Literally an expert at seeing. Figuratively a forune teller. A shaman.

---

Ahh... OK thanks Maanaam, didnt know that term...

Quote:

---

Originally Posted by dennis4558

https://teakdoor.com/images/imported/2018/02/383.jpg

You're above ground, not is when it looks like you're making progress. Alway looks better when you can see what gets done.

---

Hi Dennis, yesss... I agree!

They are on with all those ground floor columns and the ring beam too, now.

More pictures to follow...

Quote:

---

Originally Posted by Thai Dhupp

They are on with all those ground floor columns and the ring beam too, now.

---

Money! The universal incentive. :)

Quote:

---

Originally Posted by Norton

Money! The universal incentive. :)

---

lol I think you could be right!

I got it...he wants it... I think we could well be finished before 275 days!!

Could be but 275 days is reasonable for the size and quality you want of the build.
