splitlid · 09-09-2009, 02:33 PM

yes it is pretty big inside, but the last one is better i feel,
here it is with panels and columns on a plinth.ignore windows again.

DrAndy · 09-09-2009, 02:52 PM

Quote:

Originally Posted by Marmite the Dog

Quote:

Originally Posted by DrAndy

I know you are used to the "tradesmans" entrance

Sorry. Did you manage to get the stains out of the sheets?

I was going to burn them but the wife put them on Ebay

Loombucket · 09-09-2009, 07:10 PM

^

BKKBILL · 09-09-2009, 07:19 PM

^^^^ ^^^^

That was a good one the Dr. is getting quite cheeky as of late.

Humbert · 12-09-2009, 08:00 AM

I know you are going to revise the upper story windows. That will help pull it together. The narrow, vertical panes don't work very well.

splitlid · 12-09-2009, 08:30 AM

yep i think your right,although in the render im slightly drawn towards them for some reason.theres still alot of fiddling around that needs to be done. should have something ready by monday, todays a drinking day...go the all blacks.

test

Humbert · 12-09-2009, 09:10 AM

Looks great. Very different than how I visualized Nawty's original concept. I had him with a more rustic approach, you know, more timber.
The stone clad form on the upper deck is to visually block out the bath right? IMO it looks heavy up there.

THORZEN · 12-09-2009, 06:25 PM

Can't wait to see it when it's completed!

splitlid · 13-09-2009, 03:24 PM

ok here we go with a render of the rear elevation.

render time 35 mins.
5 mins in PS.

Humbert · 13-09-2009, 03:55 PM

Are you adding the landscaping in Photoshop or are they objects? What program did you say you use?

splitlid · 13-09-2009, 04:07 PM

landscaping is done in the program, added as objects.it usually adds about 60% extra on to the render time.

program is called artlantis.

Humbert · 13-09-2009, 04:18 PM

Beautiful job. That slope looks very steep, you might need a retaining wall if the design is actually built.

splitlid · 13-09-2009, 04:33 PM

cheers mate, i may change that slope to a wall.

klongmaster · 13-09-2009, 05:55 PM

wow...I've been quietly following this thread...amazing that you can get from this...

to this...

splitlid · 13-09-2009, 07:41 PM

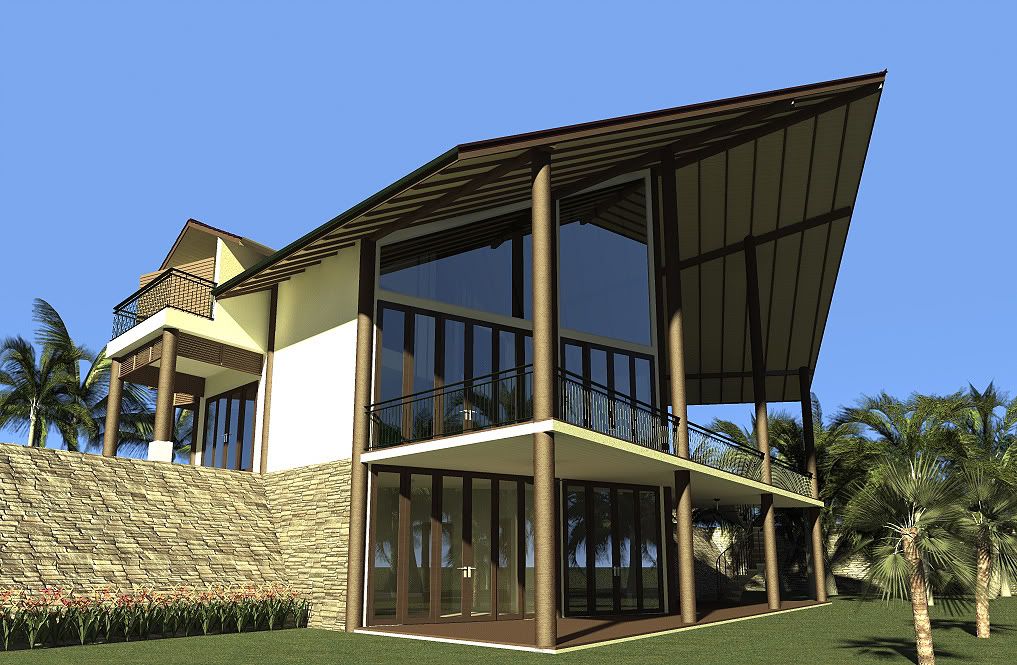

heres the retaining wall.

yes, klongy, a bit of whats called 'poetic lisence' has been used.

Nawty · 14-09-2009, 10:13 AM

Agree with Humby's comment re the stone on the second level.

Don't sgree with the vertical windows as i think they look very nice in the new rendering, was also a little worried about them initially, but look sweet now.

But can try something else if humby wants to give a recommendation for them, see what they look like.

splitlid · 14-09-2009, 10:46 AM

hi nawty, the upstairs walls around the bath, could be a frame with bamboo roller bilnds. this would soften it up a bit. or could do timber panels?

glad you liked the windows, its a bit tricky up there due to space and roof angle getting in the way.

if you have a good pic of the front doors you want then post it here and i can put them in.

are the doors at the side of the house ok?

Nawty · 14-09-2009, 10:47 AM

Just looking at those windows again and i think it gives the front a simple look......then you enter and get a lot more than what you expect with the rear so open and spectacular.

I like it as is, but again, throw something else in if easy enough and just see how it looks, maybe as i mentioned previously another vertical or 2.

Nawty · 14-09-2009, 10:51 AM

Side doors look fine.

Front door dont have a photo of here, might at home that I have on other puter.

But the chinese type may look out of place on that now.....but i have seen some with nice clean looks, but still very old style, but less rustic and chinese looking.

Nawty · 14-09-2009, 11:42 AM

Quote:

Originally Posted by THORZEN

Can't wait to see it when it's completed!

I see the confusion now......this is not the same dwelling that I am building at Survivor Plantation.....that is a tiny weeney little bungalow where i am experimenting with the tung oil.

This house is for JJ....Oop nerf or somewhere.
