  1. #76
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89
    Quote Originally Posted by david44 View Post
    A five star thread thanks for sharing the videos and all the other interesting contributions
    Thank you David44, your message really cheers me up.

  2. #77
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89


    In this video I am stitching the side panels of the second hull together. At the end of the video I am taking a look at the drawings to see how to stitch the bulkheads. I then discover that I have glued the stiffeners on the wrong sides on 6 of the bulkheads. So now I will soon discover how easy or difficult it is to remove the epoxied stiffeners and deck supports.

  3. #78
    Thailand Expat
    OhOh's Avatar
    Join Date
    Jul 2010
    Last Online
    Yesterday @ 11:57 PM
    Location
    Where troubles melt like lemon drops
    Posts
    15,766
    Oops!

  4. #79
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89
    - Wharram Hitia 14 Ep.25 - YouTube

    In this video I am glueing the stiffeners and deck supports again on the bulkheads, but now on the correct side. I discovered this mistake a couple of days ago. I think I don't have to remove the incorrect ones, just remove a little bit at places where these wrongly placed stiffeners and deck supports are in the way. I also started making a stand for one hull.

  5. #80
    Member

    Join Date
    Nov 2017
    Last Online
    Today @ 02:28 AM
    Location
    SW Australia
    Posts
    240
    Good to see someone building a boat.
    It’s something people have been doing for thousands of years and boats were built before carts or any wheeled vehicles I’d imagine.
    I built my first boat in 1976 (International A class catamaran) whilst in my last year of school, and really enjoyed feeling it float for the first time at a stage in life when there was not much happiness to be had.

  6. #81
    Custom Title Changer
    CSFFan's Avatar
    Join Date
    Dec 2007
    Last Online
    14-12-2018 @ 11:41 PM
    Location
    Bangkok
    Posts
    7,564
    Keep the videos coming please, great work!

  7. #82
    Thailand Expat
    OhOh's Avatar
    Join Date
    Jul 2010
    Last Online
    Yesterday @ 11:57 PM
    Location
    Where troubles melt like lemon drops
    Posts
    15,766
    Quote Originally Posted by Building Wharrams View Post
    think I don't have to remove the incorrect ones, just remove a little bit at places where these wrongly placed stiffeners and dec

    An excellent deduction Watson. You do realise that the hull with the extra stiffeners will be heavier and extra ballast will need to be added in the other hull.

    It may also be deemed non-standard and you will be disqualified after you win the Olympic Gold medal

  8. #83
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89
    Quote Originally Posted by OhOh View Post
    An excellent deduction Watson. You do realise that the hull with the extra stiffeners will be heavier and extra ballast will need to be added in the other hull.

    It may also be deemed non-standard and you will be disqualified after you win the Olympic Gold medal
    I thought about it and I am going to remove the wrongly places stiffeners and deck supports to save weight and stick to the building plans.

  9. #84
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89


    In this video I first clean up the workshop. Then I do some work on placing the stiffeners and deck supports on 2 bulkheads (again). I also assemble one of the stands for the hull. I use epoxy and some nails to keep it all together while the epoxy dries. Later I will add fillets to the stand to make it all stronger.

  10. #85
    Member

    Join Date
    Nov 2017
    Last Online
    Today @ 02:28 AM
    Location
    SW Australia
    Posts
    240
    Will you save much weight ?
    Stiffness and support are good things.

  11. #86
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89
    Quote Originally Posted by docmartin View Post
    Will you save much weight ?
    Stiffness and support are good things.
    I don't think anymore the weight of the extra stiffeners and deck supports is an issue. But in it is very good practice with Wharram builds to stick to the plans. At the moment I have not removed them yet (I tried a bit with a plane and a chisel, but I think I wait for a multitool that I ordered).

  12. #87
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89

    In this video I am glueing stiffeners and deck supports on the bulkheads and I am adding fillets for more strength on the stands.

  13. #88
    Member

    Join Date
    Nov 2017
    Last Online
    Today @ 02:28 AM
    Location
    SW Australia
    Posts
    240


    Keep on glueing Marcel .....
    You'll be launching soon.

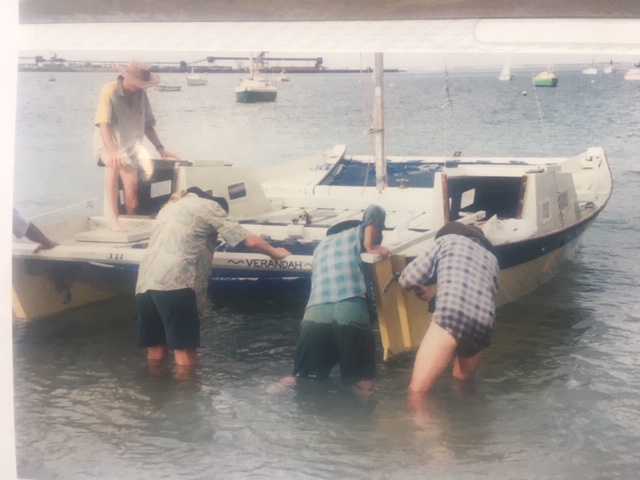

    Attached Images Attached Images
    Last edited by docmartin; 20-10-2018 at 05:15 PM.

  14. #89
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89
    Quote Originally Posted by docmartin View Post
    Keep on glueing Marcel .....
    You'll be launching soon.
    thank you so much, great photos, very nice to see

  15. #90
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89

    In this video I am stitching bulkhead 3 and 2 in place in one of the hulls.

  16. #91
    Thailand Expat
    OhOh's Avatar
    Join Date
    Jul 2010
    Last Online
    Yesterday @ 11:57 PM
    Location
    Where troubles melt like lemon drops
    Posts
    15,766
    Coming together well. Keep up the good work and videos.

  17. #92
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89
    Quote Originally Posted by OhOh View Post
    Coming together well. Keep up the good work and videos.
    Thank you, you comment motivates me.

  18. #93
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89


    In this video I stitch bulkhead 1 and 4 in place. Afterwards I am spatulas with 2,5cm radius out of thin plywood, which I will use for making the keel and bulkhead fillets.

  19. #94
    Thailand Expat
    OhOh's Avatar
    Join Date
    Jul 2010
    Last Online
    Yesterday @ 11:57 PM
    Location
    Where troubles melt like lemon drops
    Posts
    15,766
    Four questions.

    1. The bulkheads have typically a horizontal stiffener, at the top (hull sides level). Also one side, usually the shorter side, of the two top bulkhead edges. Why not the other top edge as well?

    2.The copper wires are holding the hull quite loosely. When will you be firming up on the dimensions, twisting, diagonals, lines etc. Or are you relying on the fit of all the component parts.

    3. I am assuming you will be fibre-glassing the hulls.

    4. Have you thought of adding an adjustable "J foil" out of the hull bottoms to lift the hulls out of the water?
    Last edited by OhOh; 24-10-2018 at 12:35 PM.
    A tray full of GOLD is not worth a moment in time.

  20. #95
    Member

    Join Date
    Nov 2017
    Last Online
    Today @ 02:28 AM
    Location
    SW Australia
    Posts
    240
    Hydrofoils on a Wharram ???
    Better to have aluminium or stainless steel rubbing strips on the hull bottoms and bows and sterns so you can drag them up the beach without wearing through the glass and ply.

  21. #96
    Thailand Expat
    OhOh's Avatar
    Join Date
    Jul 2010
    Last Online
    Yesterday @ 11:57 PM
    Location
    Where troubles melt like lemon drops
    Posts
    15,766
    Quote Originally Posted by docmartin View Post
    Hydrofoils on a Wharram ???
    Like this:

    Last edited by OhOh; 24-10-2018 at 01:54 PM.

  22. #97
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89
    Quote Originally Posted by OhOh View Post
    Four questions.

    1. The bulkheads have typically a horizontal stiffener, at the top (hull sides level). Also one side, usually the shorter side, of the two top bulkhead edges. Why not the other top edge as well?

    2.The copper wires are holding the hull quite loosely. When will you be firming up on the dimensions, twisting, diagonals, lines etc. Or are you relying on the fit of all the component parts.

    3. I am assuming you will be fibre-glassing the hulls.

    4. Have you thought of adding an adjustable "J foil" out of the hull bottoms to lift the hulls out of the water?
    Hello OhOh,
    I am just back from the workshop.

    Answers:
    1. I don't know (yet)
    2. Today I clamped the two sides at the stern post together, which was not stitched yet. After clamping it, I tightened up all the stitches. I am relying mostly on the fit of all the components parts, eyesight, intuition
    3. yes I will be fibre-glassing the hulls
    4. I am building this Hitia 14 according to the building plans

    Thank you for your interesting questions.

    I am going to make the video of today's work now.
    Last edited by Building Wharrams; 24-10-2018 at 02:35 PM.

  23. #98
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89

    In this video I start with making the fillets for the keel. First I stitch and clamp the side panels to the sternpost which were still not together. I had to use clamps, because the copper wire that I am using is too thin to keep this part together. Next time I will use thicker copper wire. After that I tighten all the stitches. Then I lightly send the areas where the fillets will be and after sanding I use the vacuum cleaner to take the dust away. Then I start to do the filleting. The straight horizontal part goes very well. The stempost part that is at an angle does not go that well, there are several bumps in the fillet. I will try to sand that smooth tomorrow. It was a good day.

  24. #99
    Thailand Expat
    OhOh's Avatar
    Join Date
    Jul 2010
    Last Online
    Yesterday @ 11:57 PM
    Location
    Where troubles melt like lemon drops
    Posts
    15,766
    What's your music choice?

    Did I see you use a plastic bag to place the fillet mix. Do your plans indicate the fillet spreader dimensions?

  25. #100
    Member

    Join Date
    Sep 2018
    Last Online
    Yesterday @ 07:57 AM
    Location
    Bangkok, Thailand
    Posts
    89
    Quote Originally Posted by OhOh View Post
    What's your music choice?

    Did I see you use a plastic bag to place the fillet mix. Do your plans indicate the fillet spreader dimensions?
    Sometimes like in this video you will see me wearing earpods. I listen to 4 different things:
    1. thai language lessons
    2. Alan Watts talks
    3. Sadhguru talks
    4. music from the 60s

    The fillet mix I prepare in a paper cup. After getting the right consistency for fillets I put the mix in a plastic bag and I cut one corner of this plastic bag, then I can squeeze it out with a bit of pressure. Works very well, less messy.

    The building plans indicate spreader / fillet dimensions, which for the keel and bulkhead fillets is 1 inch / 2.54 centimer radius.
