    Thai style building:- Carport - do it yourself - and CHEAP

    It's a bit quiet in the Building Forum ATM so maybe a good time to showcase the ways Thai build for themselves.

    We built this a little while ago, but most prices would still be relevant today.


    Carport - do it yourself - and CHEAP

    Building a Carport, Thai Style and not expensive.


    Can it be done? I was about to find out over the next week or two.

    The place where I stay/live in Thailand is the home of my gf's parents.
    They are Farmers, Fish and Prawn Farmers in Central Thailand.

    The gf's old man and I get on OK so the plot was hatched to build a Double Carport.
    It gives me the chance to have my wheels under cover and for him to free up space in another area.

    It was actually being planned before being discussed with me ... and, being asked to pay for some of it,
    that approach went down like a lead balloon because that 'some of it' was never discussed ...

    Since then, I've regained my cheerfulness as the build got under way and the split on the costing works out
    about 1/3rd me ... 2/3rds him ...

    When I get a copy of the Materials Invoice, I'll be able to explain better.

    But the agreement is that he paid the initial Bill and I pay the balance.


    Photos below ...

    “Someone is sitting in the shade today because someone planted a tree a long time ago”

    .

  2. #2
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876

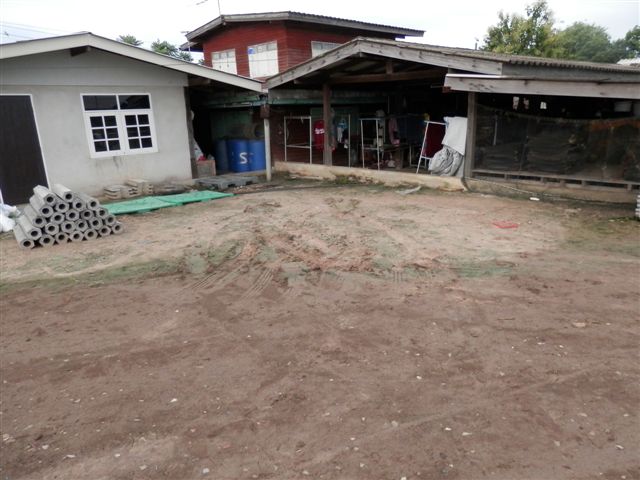

    The 'Before' Area.

    Just metres deep of Thai mud with a thin crust of sand used as a walkway between the the small dwelling and the FarmHouse.
    The Builder, the Farm Father (gf's Old Man), the gf's sister (owns the small dwelling), her Thai bf, my gf and various others
    who drift in and out, begin to discuss what is to be built.
    I learn a new phase ... 'Mai Me Tung' ... no have money ... because the gf's saying to me, 'Don't worry, Father help you pay for it'.

    I'm thinking ... ... I just wanted a few bamboo poles and some of that black shade cloth attached to the side of the house ...
    that's enough to keep the sun off my wheels!

    My 'Mai Me Tung' (no have money) was politely smiled at ... then back to the serious business of deciding what was to be built,
    how it was to be built and, importantly, what materials were to be purchased as the Builder was hired on a labour only basis.


    Fast forward a few days and we have (below) ...

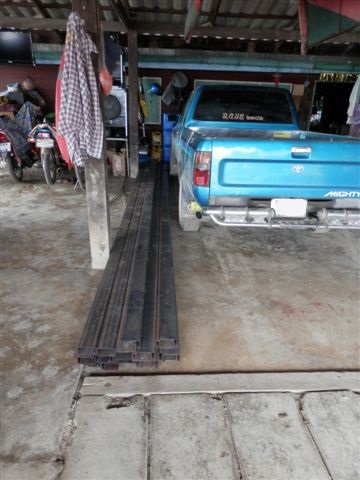

    Steel ...

    Father did make an enquiry about 'Stainless Steel', but advised by the Builder that it would both be to expensive for the job
    and the concrete doesn't adhere to it well.
    Well that was the translation for the gf of a conversation to which she was ears dropping ... who knows.

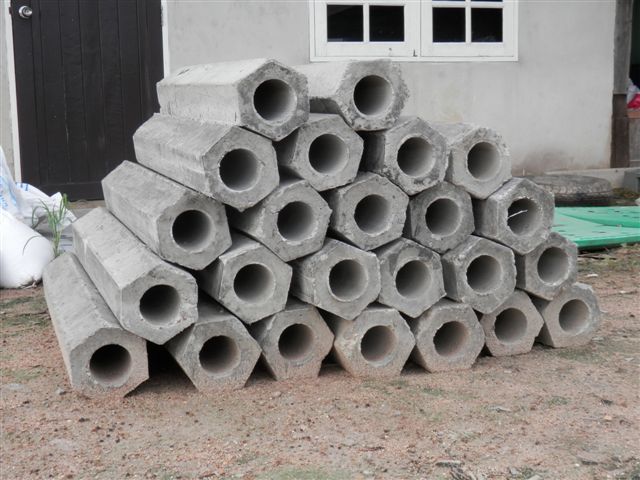

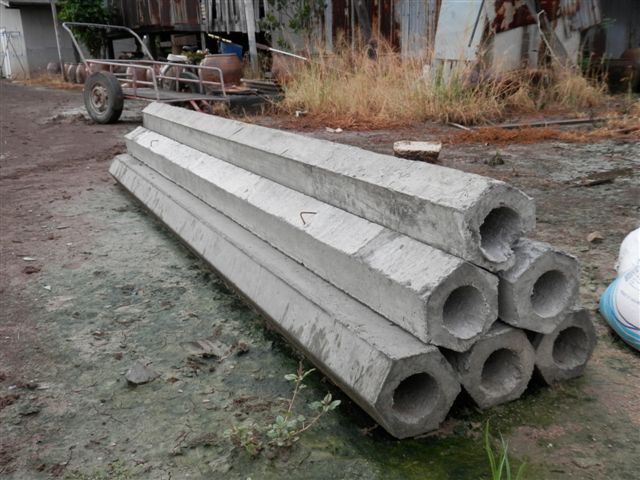

    Posts, both long and the short ones for the foundation.

    I couldn't imagine how they would use the short ones for the foundation till I saw the construction.
    ... and I'm sure the building purists will shake their head, but horses for courses and it's a lightweight
    structure, thus minimum footings required.

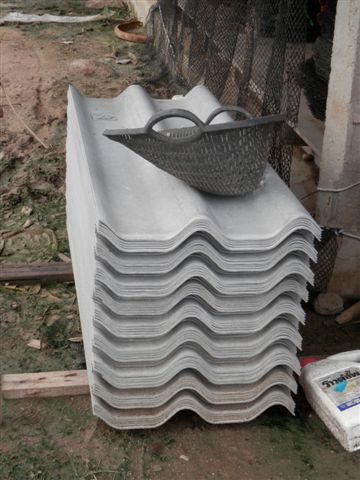

    New roof tiles.

    I was pumping for the cheaper 2nd hand ones, but the price difference was little and apparently these are the thinner type, so not so expensive.
    I said the build was going to be cheap!



    Those bags are 50 kilos.

    Now I'm not a small guy and can unload the back of their truck of the 20 kilos bags of Fish food without breaking a sweat ... but moving
    the 50 kilos bags ... man, that was hard work ... I was literally breathless after the first 3 I moved.
    Attached Images Attached Images

  3. #3
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876
    First the steel gets some attention ...


    Gf's Father
    Note the rare use of a welders mask!


    More unheralded practices - Preparation!

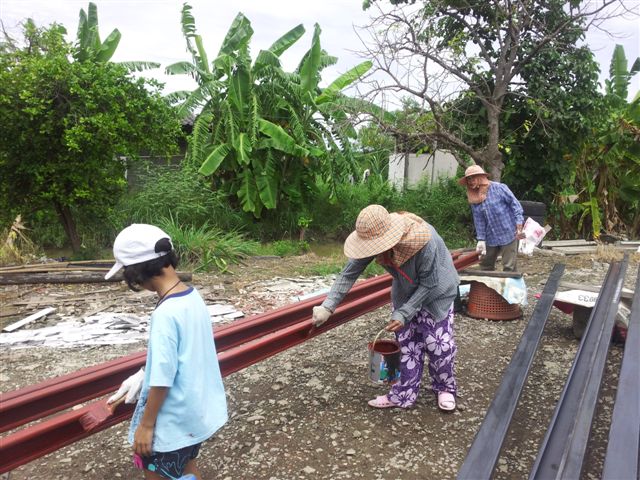

    Whole Family gets into the act ... 3 generations in that shot
    Note the worker protection wearing gloves ... pink slippers ...

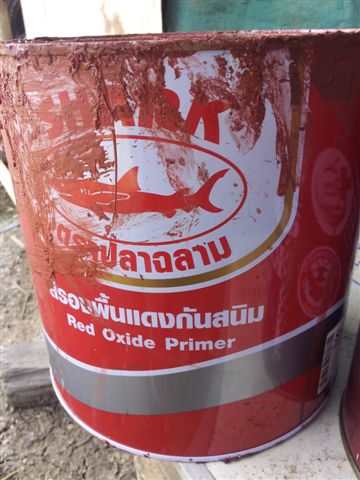

    Same but different ... apparently good quality ... price for 1 tin is 235 baht/3.5 lit
    All things considered ... a good start ... well done Farm Family

  4. #4
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876

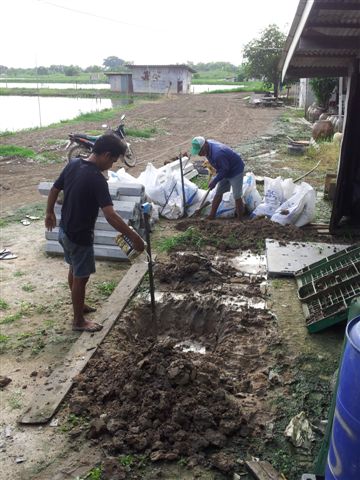

    Set out, Posts, Holes, Footings ... but no Shoes!


    Footings marked out

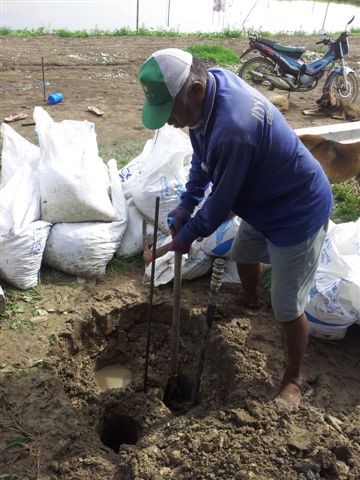

    A proper post hole digger probably would have been faster ... but labour is cheap

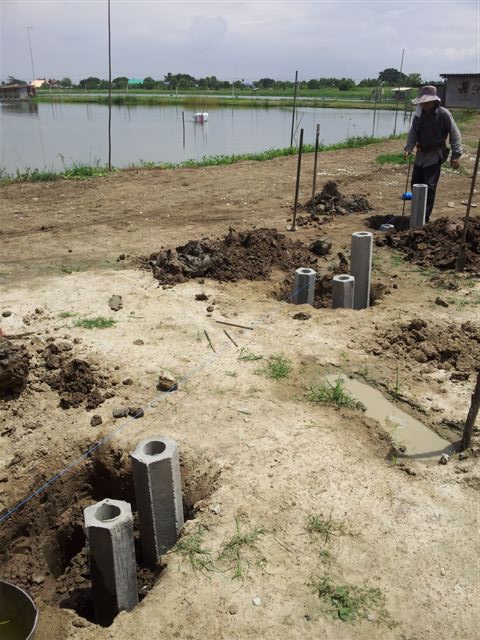

    Then you grab 3 of the short pipes from the pile and ...



    Now that is Thai mud their driving into with the footings.


    Originally, the gf's Father wasn't going to put in formal footings, but the builder convinced him otherwise.
    The roof is lightweight so not too serious in that department.

  5. #5
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876
    More Footings ...


    Have to honest ... apart from a guide for the stringline, I no idea what the timber plank does beside supporting the post while the concrete dries ...

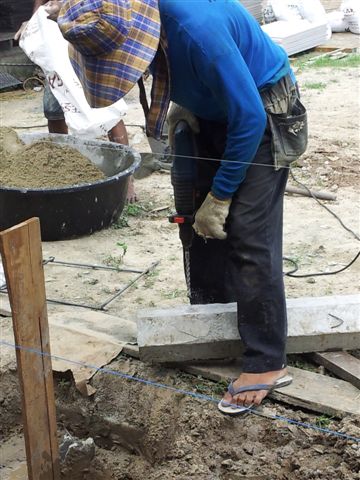

    So, grab one of these ...



    Finally some appropriate footwear for a building site.



    Hole for the rero to pass through to link the footing steel.



    Careful that string-line Somchai



    Safety standards have slipped



    Before the footings pour ...

  6. #6
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876

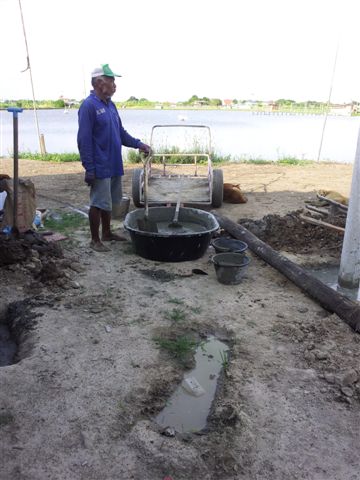

    What would fail the slump test in the West passes for concrete in the Kingdom


    Contemplating the mean of (life) concrete



    So nice you can even see your reflection in it.
    The water is free, so add lot's of it ... typical soup.



    One up ... five more to go.



    All up and looking good

  7. #7
    Custom user
    Neverna's Avatar
    Join Date
    Mar 2012
    Last Online
    @
    Location
    Behind a rhododendron bush
    Posts
    16,267
    Quote Originally Posted by David48atTD View Post
    The place where I stay/live in Thailand is the home of my gf's parents. They are Farmers, Fish and Prawn Farmers in Central Thailand.

    The gf's old man and I get on OK so the plot was hatched to build a Double Carport. It gives me the chance to have my wheels under cover and for him to free up space in another area.
    If you don't live there permanently, don't expect the "car-port" to be a car port when you return. It will become another storage area for your in-laws.

  8. #8
    Freelance Astronaut
    Thai Dhupp's Avatar
    Join Date
    Sep 2016
    Last Online
    Yesterday @ 12:25 PM
    Location
    Dubai and, err... Thailand
    Posts
    1,653
    What happened to the conclusion of this story?

    Any update, David!?

  9. #9
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876
    Quote Originally Posted by Thai Dhupp View Post
    What happened to the conclusion of this story?

    Any update, David!?
    Didn't want to suck the oxygen out of your excellent build.

  10. #10
    Freelance Astronaut
    Thai Dhupp's Avatar
    Join Date
    Sep 2016
    Last Online
    Yesterday @ 12:25 PM
    Location
    Dubai and, err... Thailand
    Posts
    1,653
    Quote Originally Posted by David48atTD View Post
    Didn't want to suck the oxygen out of your excellent build.
    thanks - i think i can spare some - when ever you have a lil time to update, I am interested.. thanks

  11. #11
    Member
    Joesixpac's Avatar
    Join Date
    Oct 2014
    Last Online
    20-11-2018 @ 02:45 PM
    Location
    In a distant memory
    Posts
    93
    Quote Originally Posted by David48atTD View Post
    Didn't want to suck the oxygen out of your excellent build.
    I’m interested in this also, including whether u were ever Able to use it as a car port or whether it turned into motorbike storage in ur absence.

  12. #12
    Thailand Expat
    Wasp's Avatar
    Join Date
    Dec 2011
    Last Online
    26-03-2019 @ 02:32 AM
    Posts
    2,193
    Where are you David ?
    I'd like to see what happened with this little Construction .
    Please.


    Wasp

  13. #13
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876
    No probs.

    TD's house is almost completed and BiP's house is done.


    Move the post into position

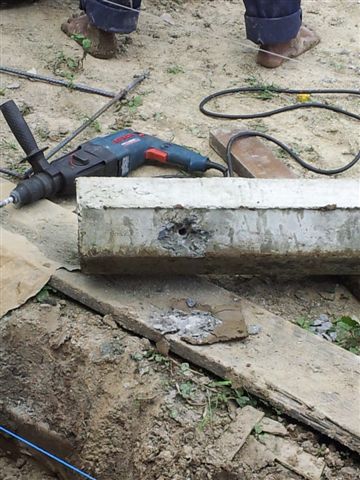

    Post drilling

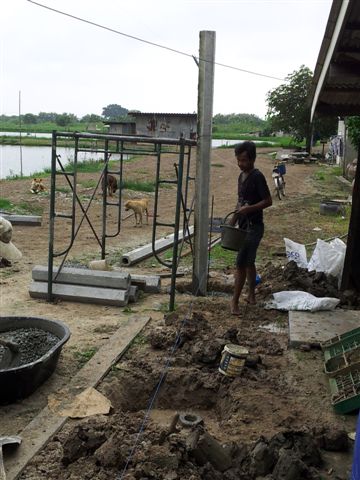

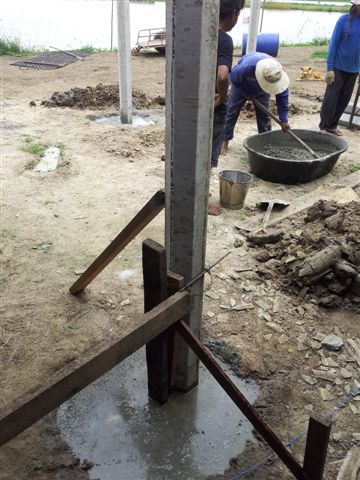

    Post into the ground
    (BTW, that wire being flipped over the concrete post is the electricity feed to the house next door)




    I presume getting the height correct ... but not sure?

  14. #14
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876

    Rero through to post

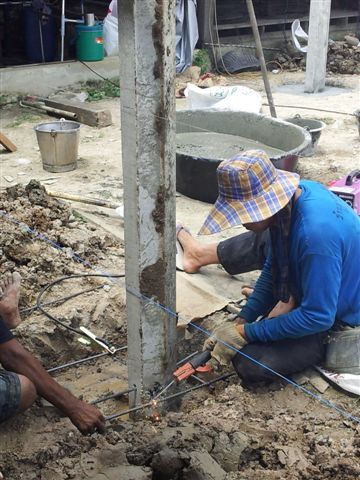

    Welding the Rero - safety standards have slipped ...




    Welding the roof frame 01




    Welding the roof frame 02 ...
    Farm Father (checked shirt) always using the safety gear.

  15. #15
    Freelance Astronaut
    Thai Dhupp's Avatar
    Join Date
    Sep 2016
    Last Online
    Yesterday @ 12:25 PM
    Location
    Dubai and, err... Thailand
    Posts
    1,653
    Thanks for that update David - ready for part 2 whenever you have a minute or two to upload.

  16. #16
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876

    Posts Up ...

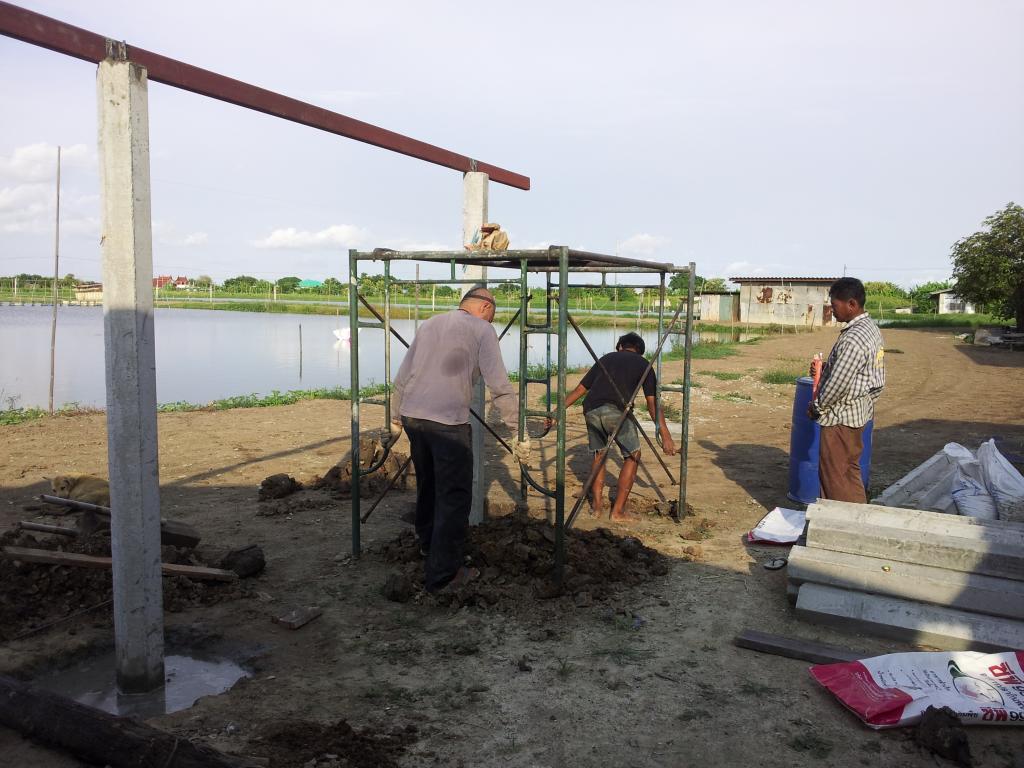

    Good to have a work platform handy

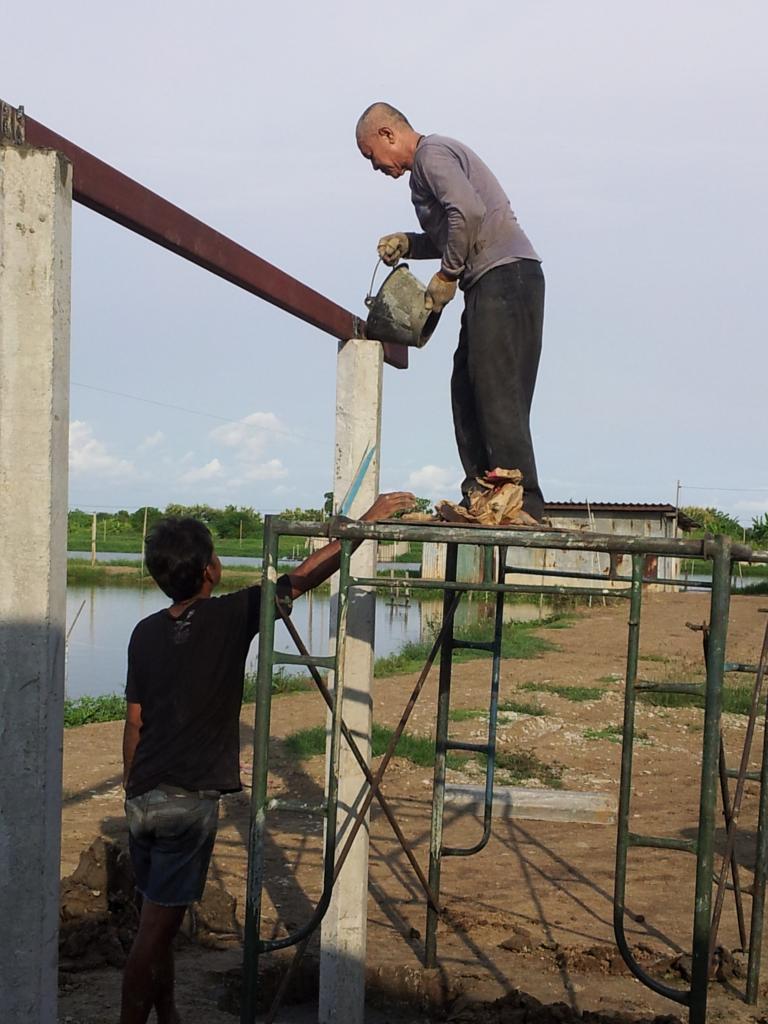

    Filling the hollow central core with concrete soup

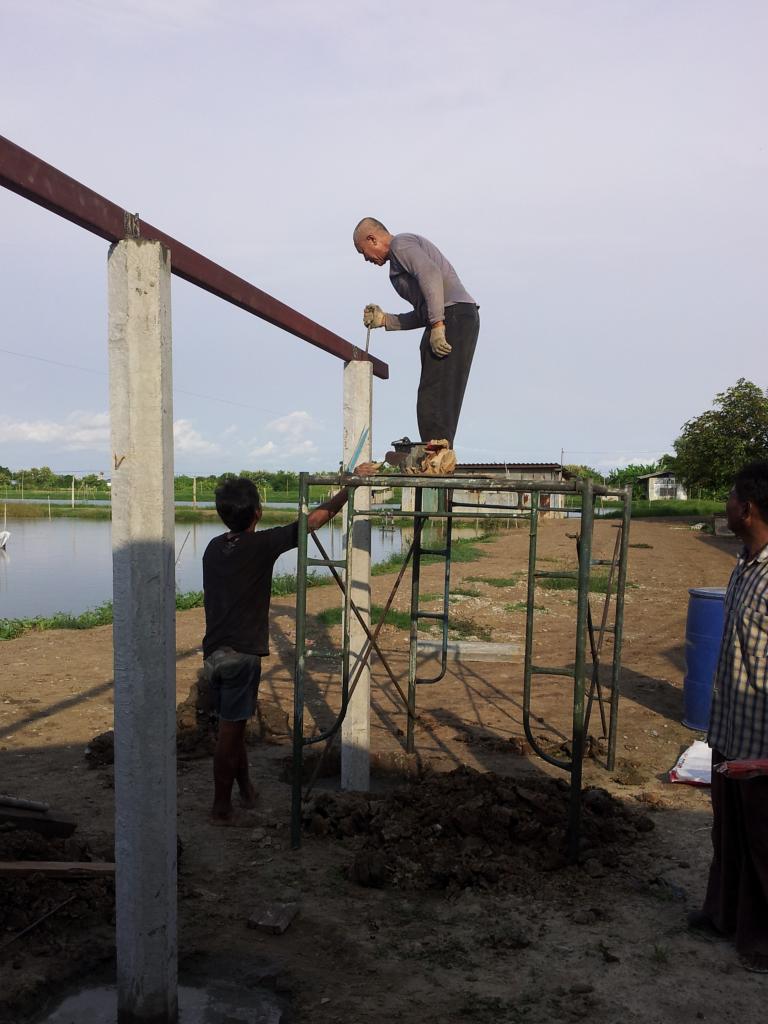

    Settling the concrete to ensure good contact and minimal air pockets.
    Probably one of the times the more liquid 'Thai' concrete is the best.
    What I don't know if the rero steel goes through the now concrete filled hollow post ... I think maybe not.
    I got a few close ups later as I was curious how they connect it all together.
    But, from the hollow post, now filled with concrete, there are 2 pieces of rero steel set into the hollow post and welded to the steel beam.

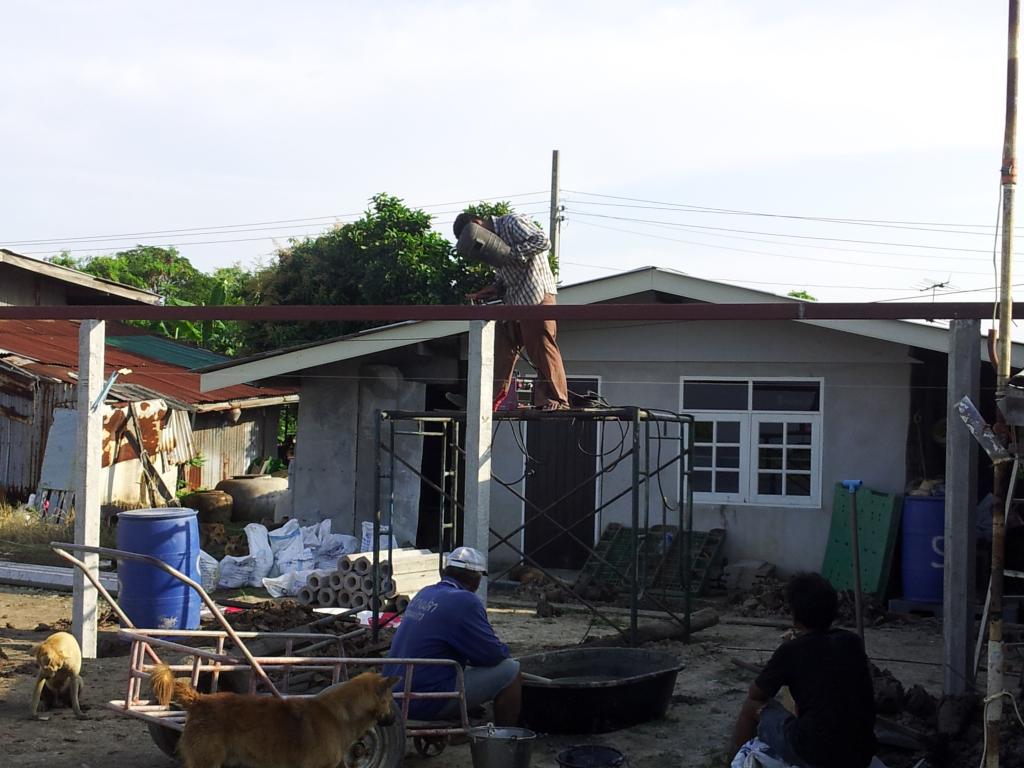

    The Farm Father holding a welding class

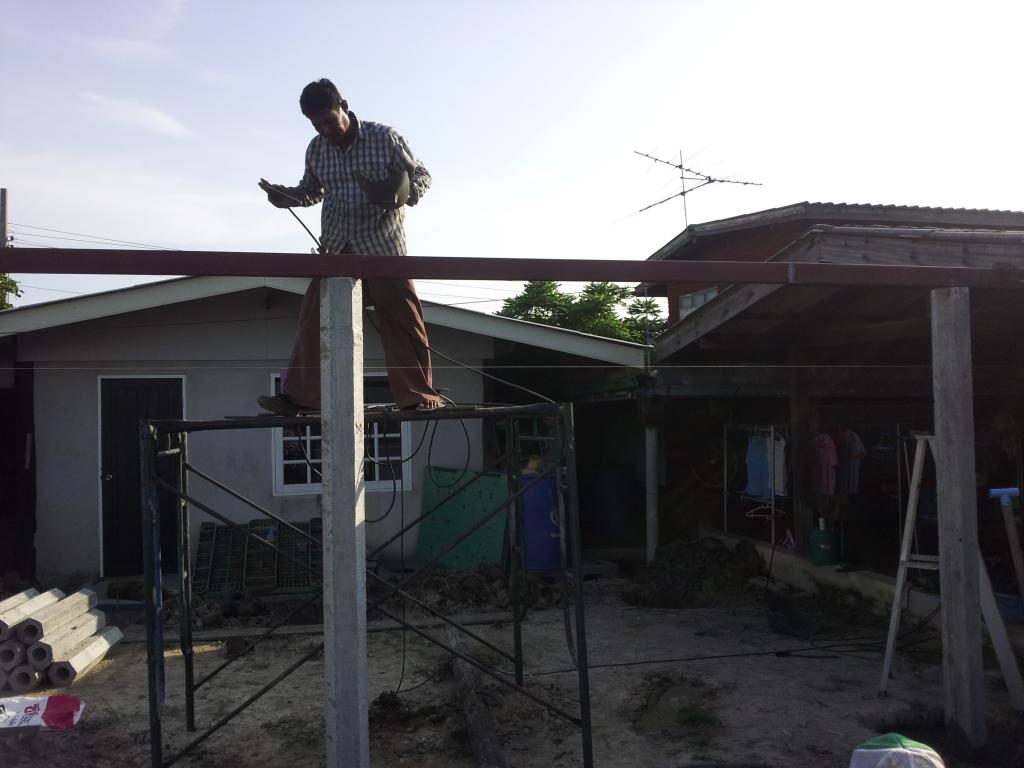

    He's welding the rero steel mentioned above to the steel bearer.
    The boys are probably have a well earned break.
    Because of that shadow I reckon it's close, if not past 5pm.
    Attached Images Attached Images

  17. #17
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876

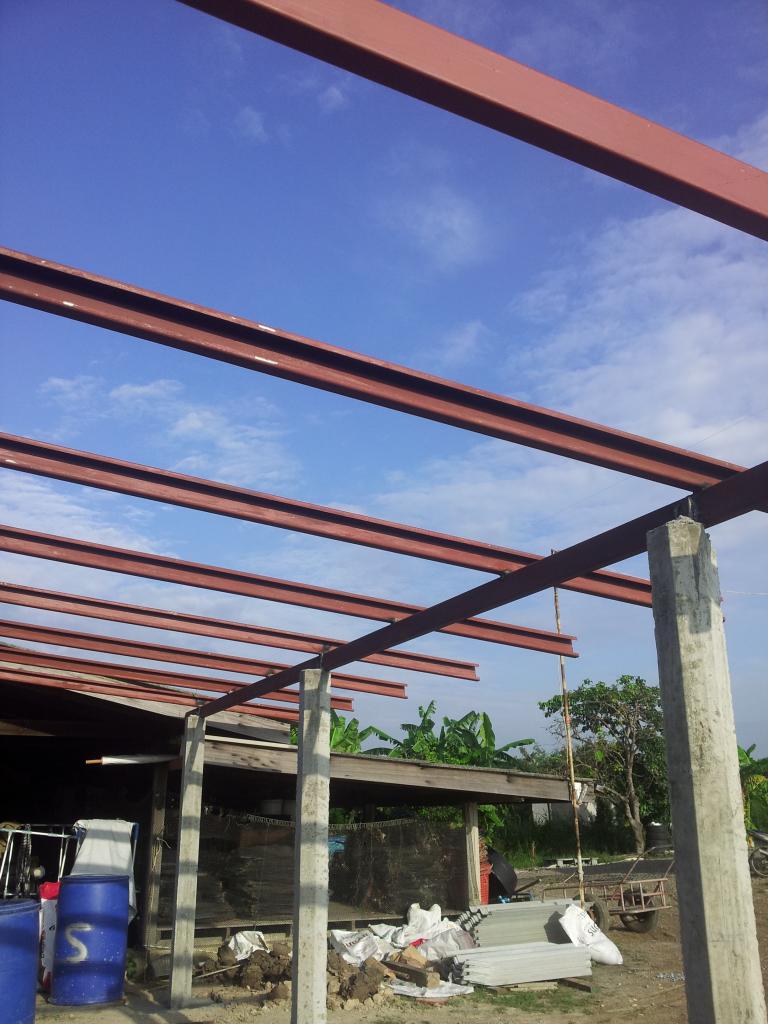

    Roof Framing ...

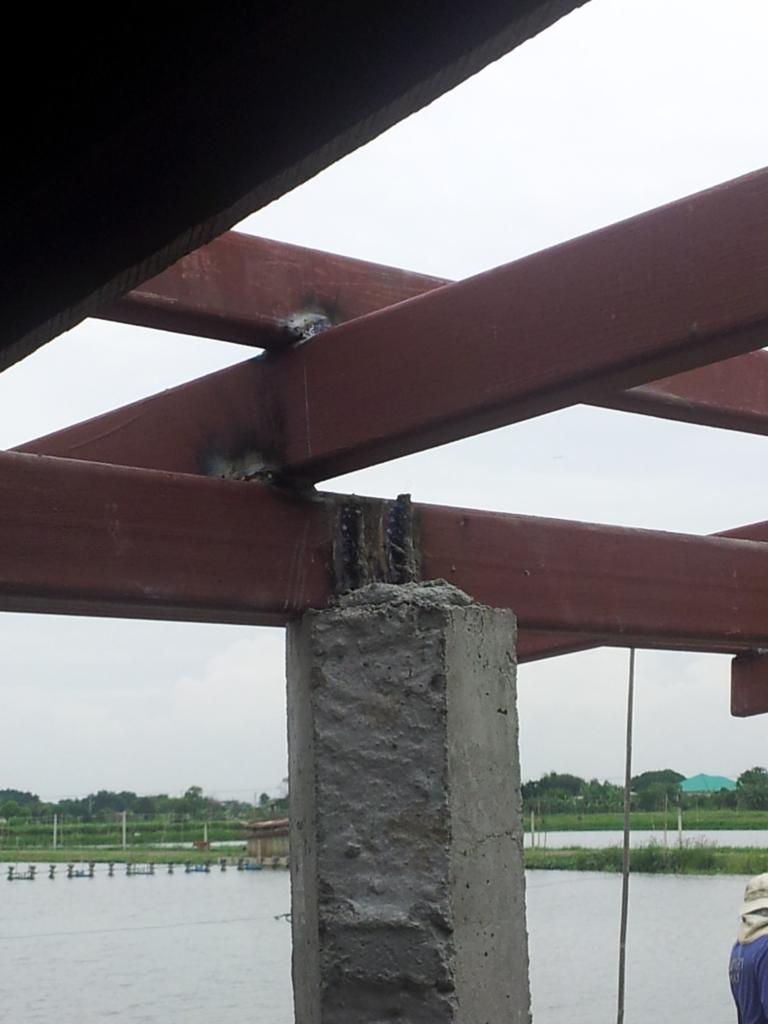

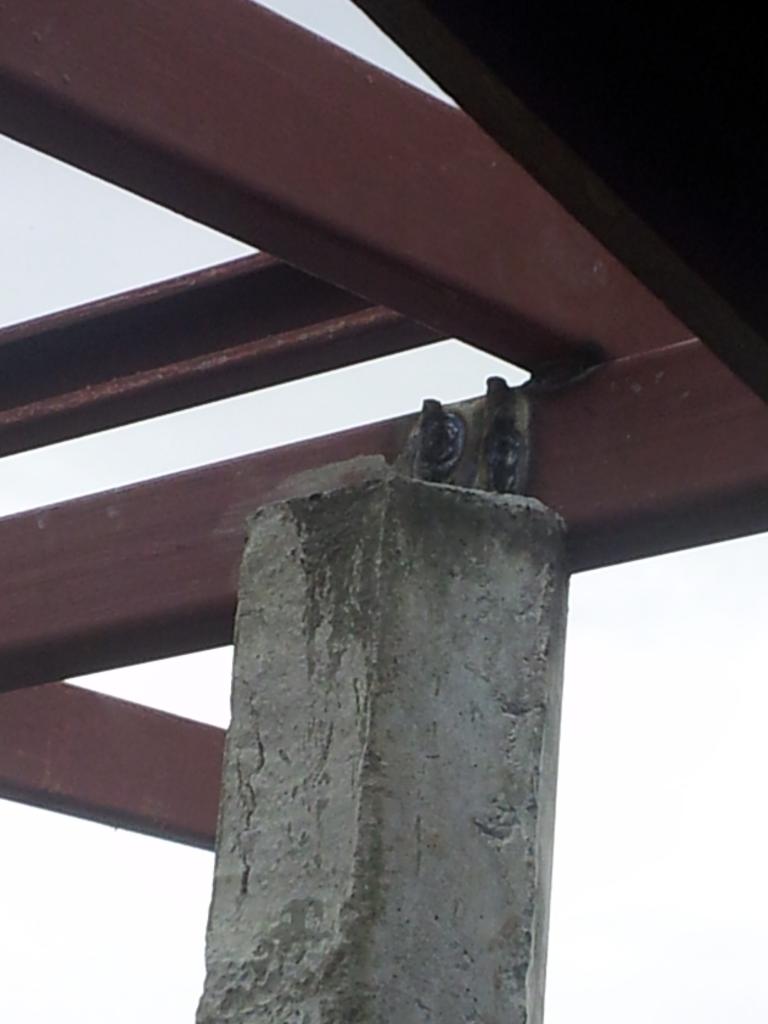

    Two angles on what I described above ... welding the rero, set in the concrete to the steel beam.
    Unlike other builds, the steel beam is sitting directly on the concrete post and attached by welding it.
    Like many Thai methods ... simple but effective.

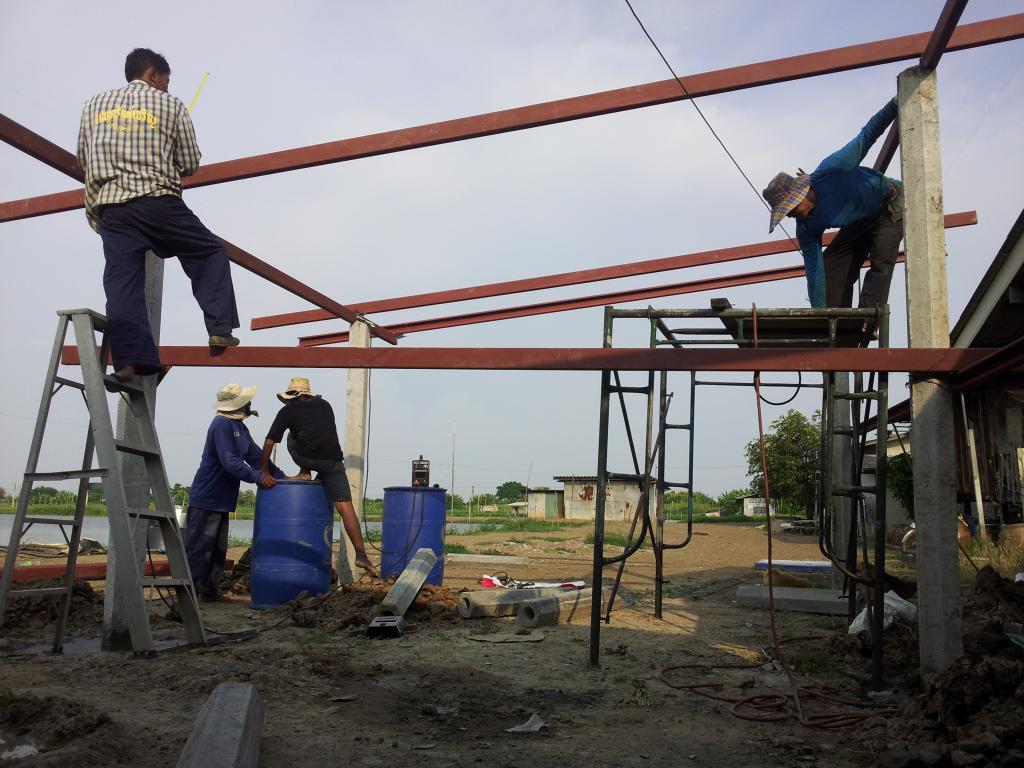

    Working well into the afternoon.



    The boys must have worked really late into the afternoon because the next morning this was the sight that greeted us.
    Maybe they are worth the 400 Baht a day

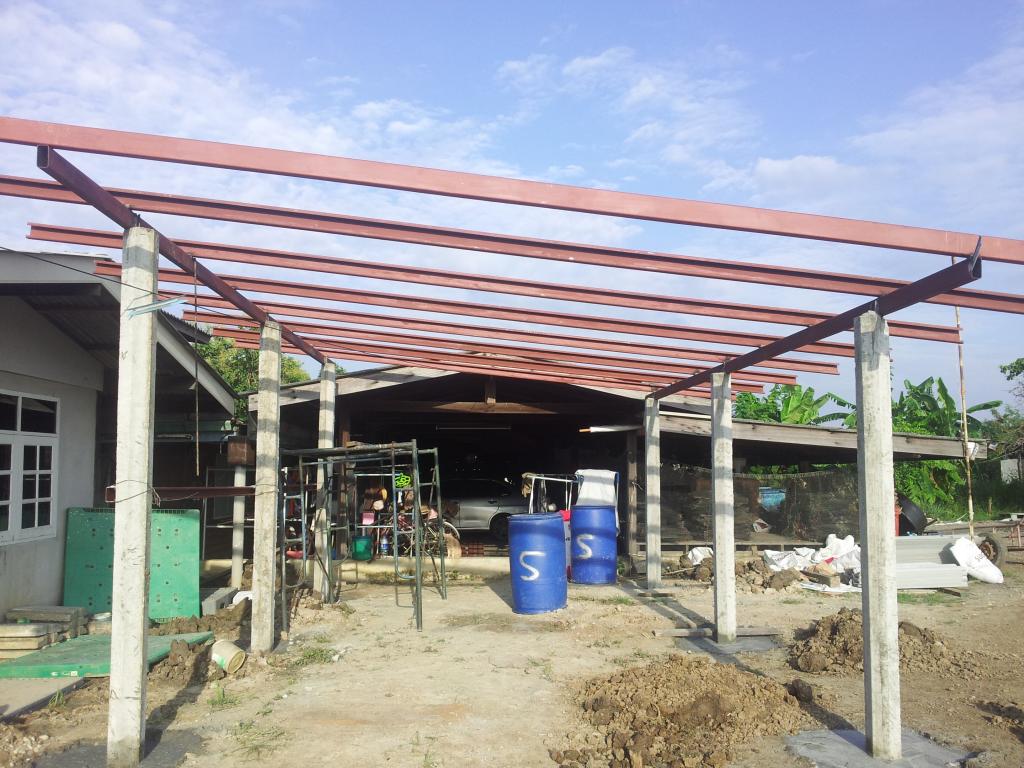

    Starting to really take shape now.

    Looking good I reckon ...
    Attached Images Attached Images

  18. #18
    Member
    Bettyboo's Avatar
    Join Date
    Nov 2009
    Last Online
    Yesterday @ 05:46 PM
    Location
    Bangkok
    Posts
    28,898
    Good thread.

    Nice looking carport coming along well.

    Although, I have to say that it looks to be rather an extravagant and expensive build...

  19. #19
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876
    ^ I hear you. Maybe more over engineered then expensive.

    The engineering is, in part due to the fact that the house is slowly sinking into the Thai mud.

    I'll show that in a future thread about building our bedroom into the Thai Farmhouse.

    I was amazed what they got done for the price!

  20. #20
    Thailand Expat terry57's Avatar
    Join Date
    Mar 2007
    Last Online
    Today @ 07:30 PM
    Posts
    25,845
    Top fookin job i recon.

    Thias can do any thing when they are not fooked up on Ya- Ba and Fire water.

    Ta bra, Cheers eh.

  21. #21
    Thailand Expat
    NamPikToot's Avatar
    Join Date
    Jan 2010
    Last Online
    @
    Location
    in wessex
    Posts
    4,169
    Cheers David. Gotta say they really do make a mess of welding, just can't be arsed to take a grinder to the steel first, takes seconds... but i've seen worse.

  22. #22
    Member
    Bettyboo's Avatar
    Join Date
    Nov 2009
    Last Online
    Yesterday @ 05:46 PM
    Location
    Bangkok
    Posts
    28,898
    ^ I hope you're not talking about my build thread!

    This build, D44, is starting to look a lot like my carport; and that's probably not a good thing...

    It's a bit of a worry that your house is sinking. How far down is the bedrock?

  23. #23
    Thailand Expat
    NamPikToot's Avatar
    Join Date
    Jan 2010
    Last Online
    @
    Location
    in wessex
    Posts
    4,169
    Quote Originally Posted by Bettyboo View Post
    ^ I hope you're not talking about my build thread!
    No, just an observation - the welds look strong enough on Davids just a bit untidy - my OCD would get me needing to grind them back and overpaint afterwards.... but that's just pedantic me...

  24. #24
    Member
    Bettyboo's Avatar
    Join Date
    Nov 2009
    Last Online
    Yesterday @ 05:46 PM
    Location
    Bangkok
    Posts
    28,898
    The 'finishing' could be a bit better in LOS, not least to better cover up the underneath...

  25. #25
    Thailand Expat David48atTD's Avatar
    Join Date
    Jan 2016
    Last Online
    Today @ 08:50 PM
    Location
    Palace Far from Worries
    Posts
    6,876
    Quote Originally Posted by Bettyboo View Post
    It's a bit of a worry that your house is sinking. How far down is the bedrock?
    bedrock?

    Probably 15 metres +

    We are here ... http://teakdoor.com/living-in-thaila...d-relaxed.html (Thailand:- Life on the Farm is kind of relaxed)

Page 1 of 2 12 LastLast

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
